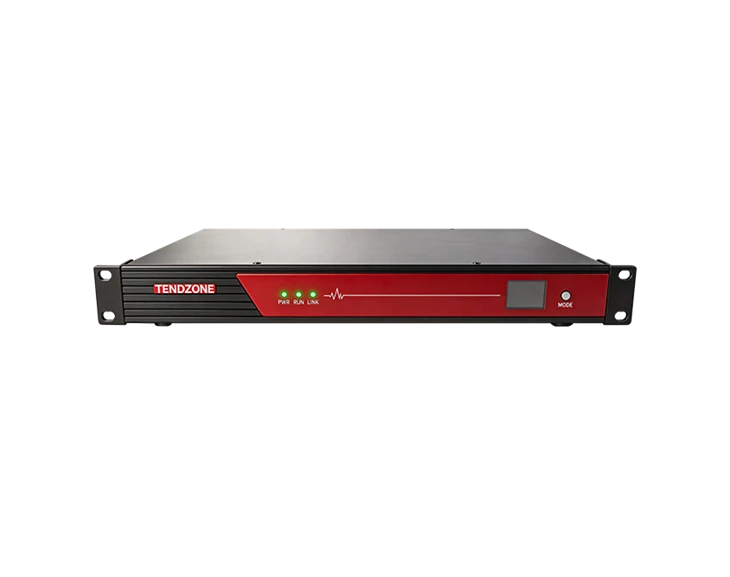

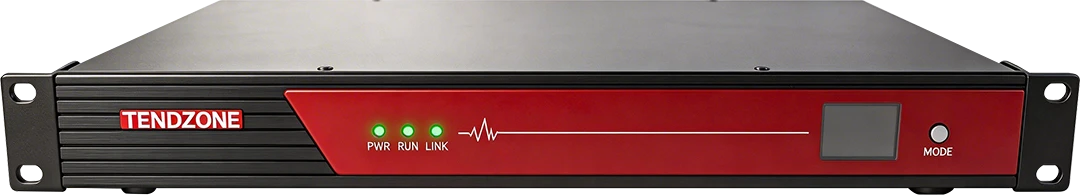

AI Audio Processor

AGATE AI DSP Is new AI audio processor , which is designed for professional audio system offering advanced

functionality for AI noise suppresion , AI AGC, AI AEC, AI automatic mixing management, echo cancellation, equalization, and control of audio signals.It features 8X8 or 16x16 analog audio input and output channels With a robust set of features including AI processing, automatic mixing, and comprehensive controls, it's ideal for various applications such as conferences, performances, and installations.

Comprehensive Processing Functions:
AI Noise Suppression:

Utilizing two adaptive ANC modules, it provides significant noise reduction (up to 18dB) across all input channels.

AI AGC automatic gain control :

Capabilities include AI-driven noise reduction and automatic gain control for optimal audio clarity and consistency.
AI Automatic Mixing: Intelligent automatic mixing functionality ensures seamless audio blending.
AI AEC Adaptive Echo Cancellation:

Equipped with two AEC modules, it offers multiple echo cancellation tail lengths and adjustable levels, making it suitable for small, medium, and large spaces.

Input Channels
Input Control: Phantom power, sensitivity/preamp gain (0/10/20/30/40dB), mute switch, phase switch, fader control with maximum and minimum value settings.
Signal Generator: Generates pink noise, white noise, and sine wave signals with selectable frequency and levels for the sine wave.
Expander: Adjustable control threshold, ratio, attack time, release time, and parameters for direct and full reset, functioning as a noise gate when set.
Compressor: Similar adjustable parameters as the expander for noise gate functionality.
Equalizer: 10-band parametric EQ options with selectable types: LP, HP, H-shelf, L-shelf, Notch, PEQ.
Feedback Cancellation: Adaptive feedback cancellation (AFC) with automatic frequency shifting. Supports up to 16 notch filters with manual, fixed, and dynamic modes. Suppression depth ranges from 0dB to -20dB. Supports modes tailored for conference and music settings, effectively handling microphone feedback issues.
Automatic Gain Control: Adjustable target level to ensure stable output volume regardless of the speaker's distance from the microphone.

Output Channels
Equalizer: Parametric EQ: Selectable 10/15/31-band with types like LP, HP, H-shelf, L-shelf, Notch, PEQ.
Delay: Maximum delay of up to 2000ms, with time and distance representation.
Limiter: Instant response algorithm with adjustable threshold and recovery time.
Output Control: Mute switch, phase switch, fader control with maximum and minimum value settings.

Feedback and Gain Management:
The adaptive feedback cancellation system effectively manages microphone feedback and enhances sound clarity.
Automatic gain control maintains consistent output levels despite variations in speaker proximity.

Extensive Connectivity Options:
Supports multiple forms of connectivity such as RS232, UDP, and TCP/IP for integration into broader audio-visual systems.

Management and Control
Software: Connect via Ethernet, supporting direct, local area network (LAN), and wide area network (WAN) connections. B/S architecture allows parameter adjustments through a browser interface with graphical representation available in Chinese and English.
Supported Operating Systems: Compatible with Android, iPad, Windows, native HarmonyOS 5.0, KylinOS, etc.
User Customizable Interface: Supports user-defined operational interfaces, custom logos, custom room names, and key locking to prevent accidental operations, and can run cross-platform across different OS.
Camera Tracking Function: Built-in voice tracking capabilities for tracking combined with microphones and cameras. Supports controlling up to 32 cameras with functions for movement, focus, zoom, saving, and recalling preset positions.
Control Protocols: Supports RS232 and UDP for control.
Preset Management: Automatic power-off memory function with storage for 200 scenes, includes delete, call, edit features, and allows for scene information import/export.
Grouping Control: Allows for grouping input or output channels for DCA or group control, enabling synchronized level control across multiple physical channels.
Channel Parameter Copy Function: Easily copy and paste audio channel module parameters to other channels or specific module parameters between channels.

.
