10' Full-range Conference Speaker

10' Full-range Conference Speaker
Details:
The Tendzone EX-10 speaker is a versatile speaker that features a compression-type CD high-frequency driver and a high-performance magnetic low-frequency driver.
Send Inquiry
Description
Specification
Download
Application

Shenzhen Tendzone Intelligent Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 10' full-range conference speaker in China. Please feel free to wholesale high quality 10' full-range conference speaker made in China here from our factory. We also accept customized orders.



10 Full-range Conference Speaker-1

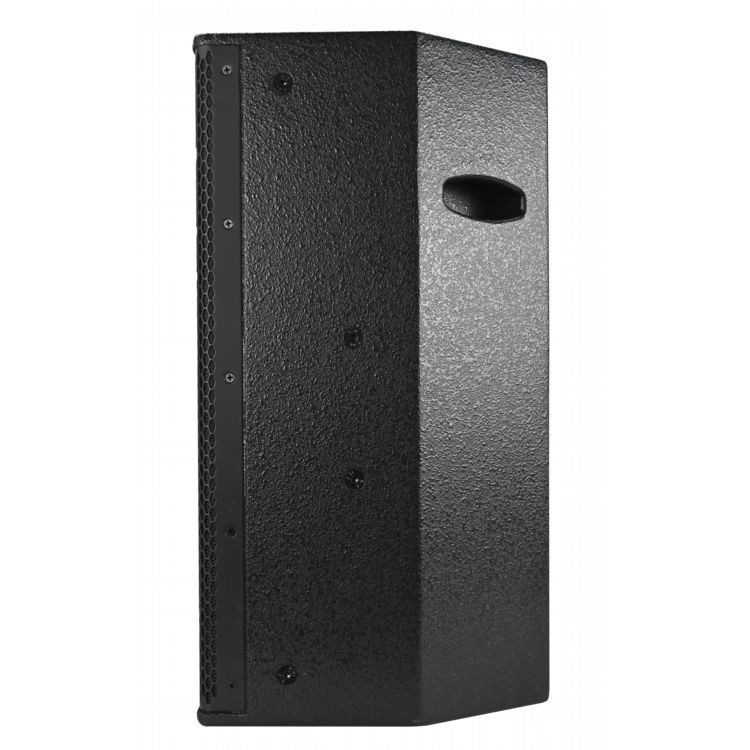

10 Full-range Conference Speaker-2




Overview



The Tendzone EX-10 speaker is a versatile speaker that features a compression-type CD high-frequency driver and a high-performance magnetic low-frequency driver. With its powerful output, it ensures rich and clear voice amplification. The cabinet is designed with multiple M8 suspension points, allowing for flexible multi-angle installations; it can be suspended or mounted on stands. Additionally, its trapezoidal design enables it to be placed on the floor for use as a monitor speaker. This product serves well as the main PA system in medium-sized venues such as conference rooms, shopping malls, and classrooms, and can also function as an auxiliary speaker in large spaces like auditoriums and command centers.





Hot Tags: 10' full-range conference speaker, China 10' full-range conference speaker manufacturers, suppliers, factory, Audio Digital Signal Processor, Network DSP Audio Processor, microphone, Vailink 2x2 UAC Adapter, Vailink 2CH Analog Input Adapter, 16x8 Fixed Dante Audio Processor


SPECIFICATIONS



General Performance

Type

10-inch two- way full- range speaker

Frequency range (-10dB)

69Hz-20kHz

Axial sensitivity

94dB/1W/1m

Impedance

8ohms

Maximum sound pressure level

Continuous: 11 7 dB
Peak: 12 3 dB

Rated Power

250W

Long term maximum power

500W

Peak Power

1000W

Coverage Angle

H90°×V60°

Low frequency unit

10" unit × 1
2" voice coil

High frequency unit

1" throat, 1" voice coil

Box material

High density board, water-based paint

Input Connectors

2×NL4 speaker socket

Hanging point

18 M8

Handle

have

Color

black

Installation

Wall mount, ceiling mount, floor monitor, tripod mount

Gross weight/net weight

15.4 kg /13.8 kg

Dimensions (H x W x D)

520x306x280mm
