Product Overview

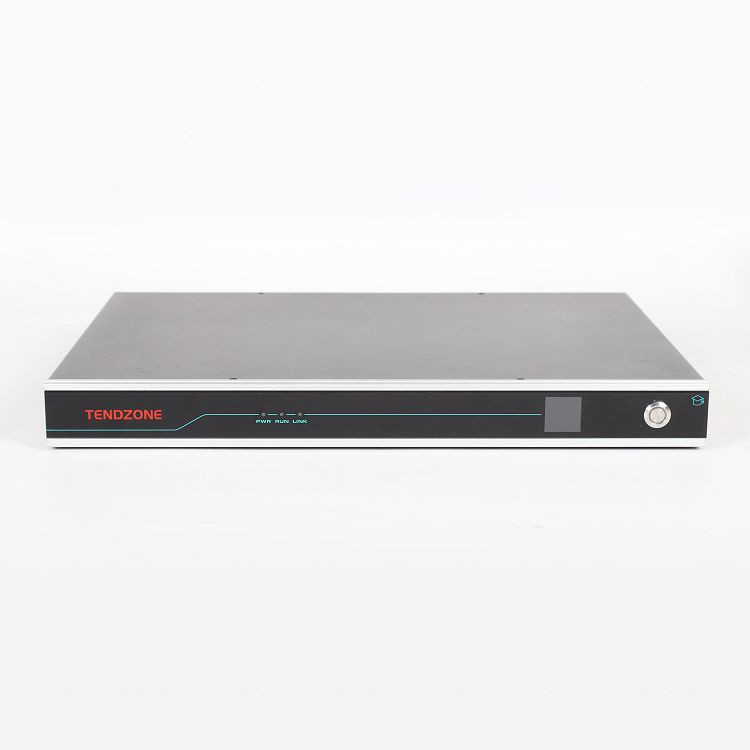

The TCN107 Smart Education Terminal is an upgraded, high-performance all-in-one device purpose-built for today's smart classrooms. It integrates a digital audio processor, video matrix, teaching central controller, media processor, video interaction engine, IoT control, always-on auto-recording, and a POE switch into a single 1U chassis - eliminating the rack of discrete boxes that traditionally fills a recording classroom.
With rich I/O including RS-232/RS-485, RELAY, I/O, IR, USB, speaker outputs, MIC/LINE inputs (with +48V phantom power), LINE OUT on Phoenix connectors, HDMI, LAN, and WAN, the TCN107 connects directly to cameras, displays, amplifiers, microphones, and environmental devices, and powers tracking cameras over POE - delivering a turnkey AV + control solution for routine recording classrooms and interactive teaching spaces.
All-in-One Integration
- Digital audio processor with AFC, ANS, AEC, AGC and full dynamics chain (Expander, EQ, Compressor, Delay, Limiter).
- Multi-format video matrix with built-in compositing (single / dual / triple / 9 / 16 split, PiP, PoP, subtitle overlay).
- Teaching central controller - programmable scripts for RS-232/485, I/O, IR, scheduled tasks, IoT gateway, and Harmony (Huawei) display control.
- Media processor with H.264 / H.265 codec, 8-ch 1080p@30 encode and 8-ch 1080p@30 decode per unit.
- Video interaction engine - 1+1 remote teaching, SIP dual-stream video conferencing, up to 600 ms anti-jitter tolerance.
- Always-on auto-recording with movie / resource modes, RTMP live streaming, FTP upload, and USB auto-copy.
- 6-port Gigabit POE switch (1×WAN + 5×LAN, 4×POE) - powers tracking cameras directly, no extra switch needed.
- Distributed AV ready - operates as an input / output node on a Tendzone distributed control network.
Application Scenarios
Whether in routine-recording classrooms, smart classrooms, or distance interactive teaching, the TCN107 seamlessly integrates into diverse educational settings, delivering stable and reliable audio-visual support for teaching scenarios.
01
Routine-recording classrooms (K-12 and higher education) with multi-camera capture and auto-directing.
02
Smart classrooms integrating audio, video, and centralized control into one platform.
03
Dual-teacher / distance-delivery classrooms - 1+1 remote interactive teaching.
04
Multi-media training rooms, lecture halls, and conference rooms with built-in control and SIP video conferencing.
05
Distributed control deployments where TCN107 acts as a node in a Tendzone distributed AV network.
Application Cases
TCN-1070 adapts to a wide range of educational spaces, from single-building K-12 schools to multi-campus universities.
China Foreign Affairs University
In this diplomatic studies project, 17 smart classrooms were constructed. Based on classroom size and teaching models, three models of our smart education terminals - the TCN107, TCN108 PRO, and TCN109 - were selected to meet the requirements for teaching sound reinforcement, classroom centralized control, course recording, and centralized management.
Shenzhen Polytechnic University
Shenzhen Polytechnic University – In this project, a total of 25 classrooms were built to meet the application requirements for daily teaching sound reinforcement, broadcast notifications, classroom centralized control, access control and lighting IoT control, remote operation and maintenance, and video class monitoring.
Xi'an University of Posts and Telecommunications
Xi'an University of Posts and Telecommunications – A total of over 40 routine smart classrooms were upgraded and renovated. Relying on our smart education terminals, each classroom is able to achieve full functional coverage with a single device, integrating audio processors, power amplifiers, video switching matrices, POE switches, classroom centralized controllers, and more.
Zhongnan University of Economics and Law
Zhongnan University of Economics and Law – The university has built a variety of spaces, including conference rooms, job interview rooms, career development guidance rooms, smart classrooms, multi-functional lecture theaters, recording classrooms, auditoriums, paperless conference rooms, and more.
Key Features
▲Industrial-Grade Hardware Platform
ARM Cortex-A53 quad-core @ 1.15 GHz on a Linux-based industrial architecture - virus-free, stable under 24/7 classroom duty.
▲Pro Audio Built-In
6× Phoenix MIC / LINE inputs with +48V phantom power and auto MIC / line detection.
2× HDMI embedded audio inputs + 2× HDMI embedded audio outputs.
▲Auto Recording & Live Streaming
Up to 6 channels of audio + video recording in Movie mode and Resource mode.
4K composite recording - multi-stream stitched into a 4K output for replay.
▲Intelligent Web-Based Director
Built-in web director with Auto / Semi-Auto / Manual modes and PVW / PGM preview.
12 preset layouts + 6 user-defined layouts for any classroom scenario.
▲Centralized Classroom Control
Programmable control logic for 3× RS-232/485, 2× RELAY, 2× I/O, 2× IR, 1× Debug.
Script editor with protocol templates, scheduled tasks, IoT gateway, AV-link triggers, device wake-up, and Harmony (Huawei) display control.
System Solution
In a typical classroom, the TCN107 sits at the AV heart of the room: it powers the teacher and student tracking cameras through POE, ingests up to two HDMI sources from laptops or document cameras, mixes wireless and wired microphones, drives the room amplifiers, and outputs to two HDMI displays. It records up to six channels locally to its 2 TB drive, streams the lesson over RTMP, and links with the timetable for fully automatic recording and directing. RS-232/485, RELAY, I/O and IR ports take charge of lighting, screens, and the projector so the entire room is controlled from one web UI.
Our Service
Our dedicated customer support team offers reliable technical support, quick response times, and preventive maintenance service.
Pre-Sales
We assess your unique requirements, provide tailored consultations and demonstrations, and design a customized AV system to ensure the perfect solution.
In-Sales
We deliver transparent proposals, manage the full project implementation, and provide initial training to ensure a smooth and successful setup.
After-Sales
We offer prompt technical support, customized maintenance plans, continuous software upgrades, and actively use your feedback to drive ongoing service improvement.
Tendzone, established in 2010, is a global leader in providing advanced audio-visual (AV) solutions and manufacturing high-quality AV products. We specialize in a wide range of cutting-edge technologies, including audio processors, microphones, speakers, power amplifiers, AV over IP systems, digital conference systems, and MIDIS Distributed Multimedia Transmission Control Systems. Our solutions are trusted across industries such as conference rooms, command centers, education, multi-functional halls, and stadiums.
Our address
Building 1A, Building 16, Shenzhen International Innovation Valley, Dashi 1st Road, Nanshan District, Shenzhen
Phone Number
Mobile/Wechat/WhatsApp : (+86) 13302998794
travis.tu@tendzone.com
Hot Tags: smart education terminal, China smart education terminal manufacturers, suppliers, factory, education solution, Normalized Recording and Broadcasting Classroom Terminal, Smart education terminal, Premium Recording and Broadcasting Classroom Terminal, Multimedia ClassroomTerminal, education terminals
SPECIFICATIONS
|
General Parameters |
|
|
Hardware Information |
CPU model: ARM Cortex A53 quad-core @1.15GHz processor; |
|
Safe and stable |
Adopting industrial-grade system architecture, developed based on LINUX system, virus-free |
|
Data Interface |
Support 1*TYPE-A USB2.0+1*TYPE-A USB3.0 |
|
Network Camera |
The local network camera access supports no less than 16 channels , and the network forwarding supports no less than 4 channels |
|
Video Codec |
8-channel 1080P@30 encoding and 8-channel 1080P@30 decoding; |
|
Audio and video protocol |
Audio supports G.711, G.722, G722.1, G722.1C, AAC; video supports H.264, H265 |
|
Video synthesis |
Built-in video splitting function, which can realize single-screen, double-screen, three-screen, nine-screen, sixteen-screen, etc. single-screen/picture-in-picture/picture-out-picture splicing and subtitle overlay; |
|
control Panel |
Supports multiple control panels, optional 10.1-inch multimedia control and 4-inch multimedia control screen; |
|
Codec rate |
Each stream 128 Kbps ~ 8 Mbps |
|
Audio Processing |
Built-in AFC, ANS, AEC, AGC audio processing algorithms, with expander, equalizer, compressor, delay, limiter and pre- and post-processing modules; audio processing module supports graphical operation; |
|
Video Processing |
Support video resolution adaptation, switching, allocation, screen splitting, subtitle overlay, and image parameter adjustment |
|
Communication Protocol |
Communication protocols: SIP, BFCP dual stream, RTSP, RTMP, TCP/IP, FTP, UDP, TLS; |
|
Mixing function |
Supports local audio, HDMI embedded audio, and remote audio RTSP network access streams entering the mixer, and can dynamically select mixing |
|
Environmental control interface |
3 RS-232/485 ports, 1 debug port, 2 RELAY ports, 2 I/O ports, 2 infrared ports |
|
videoconference |
Support SIP dual-stream video conference calls and 1+ 1 remote video teaching interaction |
|
Push stream |
Support RTMP streaming |
|
Recording function |
1. Support automatic recording and broadcasting function, up to 6 channels of video and audio recording, support automatic copying and recording of U disk, forced upgrade of U disk system and restoration of initial configuration, support recording file content management (download/upload/on-demand/repair/delete); support 4-camera high-quality automatic recording and broadcasting; 2. Support 4K resolution video recording, multiple video streams can be combined into a 4K resolution composite picture for recording; |
|
Network Communication |
Support network sleep and wake-up, one-touch system switch |
|
Maintenance function |
Supports Web interface management, provides quick configuration of device ports, supports Web port password modification, IP address modification, factory reset, software upgrade, indicator light, infrared learning, log management, serial port debugging, Telnet remote debugging, remote operation and maintenance management |
|
Device size |
Product size: width*height*depth 436.8mm*45mm*318mm Packing size: width*height*depth 560mm*135mm*408mm |
|
Input voltage and current |
AC100~220V/50Hz |
|
Device power consumption |
Without external speaker output and POE powered device: Typical power consumption When two external speakers and an external POE powered device are connected: Full load power consumption |
|
Operating temperature |
0~45℃ Working |
|
Humidity Altitude |
10% to 90%, altitude less than or equal to 5000 meters |
40W
340W
