Overview

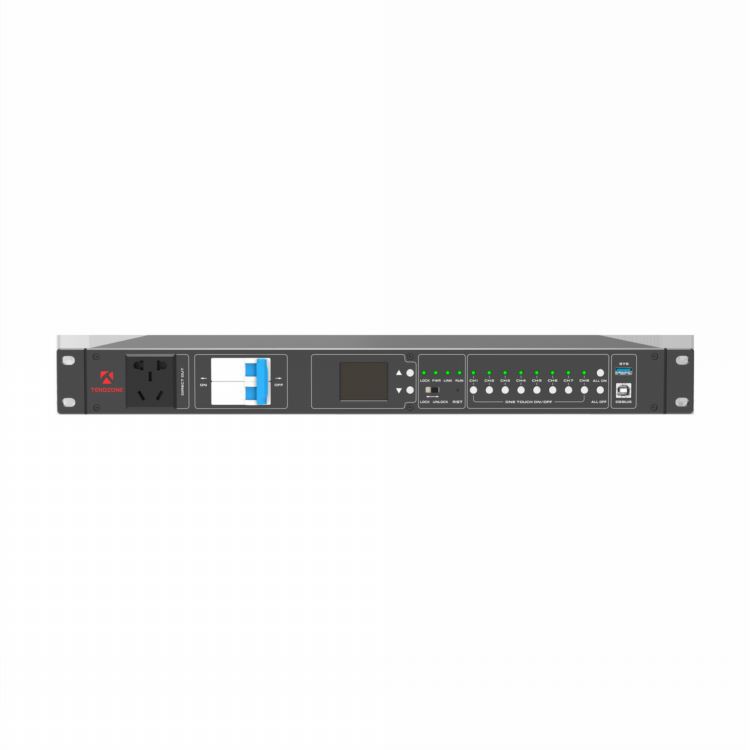

CC-9N is the latest smart operation and maintenance power manager launched by Tendzone for the general industry. This product supports intelligent power statistics, which can count the individual power consumption of each output external device, and can also count the total power consumption of all external devices . The front panel is designed with a one-key intelligent full on/off button and a separate on/ off button for each channel , which can meet the needs of all channel on/off and single channel on/off at the same time.
The device has a built-in overcurrent protector to ensure the safety of equipment power use . It is suitable for command and control centers, large multimedia conference halls, multi-functional halls, broadcasting systems, training centers, multimedia classrooms, high-end villas, hotels, smart homes , etc. It can be widely used in government/enterprises, public security, justice, finance, transportation, armed police, education, medical and other industries.
Features
Supports configuration of device working modes, including sequencer mode and relay mode. In sequencer mode, the order and delay of each channel switch can be configured. In relay mode, each channel switch can only be controlled by manual buttons, web background, and control commands.
Supports individual on/off control of 8 power output interfaces through the web page background and the control buttons on the front panel of the device, and also supports full on/off control of 8 power output interfaces;
Ordinary anti-accidental touch key lock : To prevent accidental touch operation , lock or unlock the power output control key through the lock button on the front panel of the device;
Advanced permission to prevent accidental touch network lock: supports administrators to log in to the web and configure the lock or unlock function of all control buttons on the front panel of the device to prevent accidental touches. Unlocking can only be done after passing the administrator permission verification;
Air switch (overcurrent protector): small circuit breaker , 40A , 2P double-pole air switch;
Lightning protection: with surge suppression circuit;
When fully open or fully closed, the delay time of each channel can be set separately, with a maximum delay of 999 seconds and a default delay of 1 second ;
Support third-party platforms to control devices through the network, remotely obtain input voltage, each output current, power consumption, power consumption, working hours, abnormal alarms and other information, remotely switch the output of the smart operation and maintenance power manager , configure working mode, power-on delay time, timing switch and other parameters; network remote control interface (device timing on/off), remote power statistics interface (current output current of each channel, current power consumption of each channel), and the operating status of each port;
alarm information when the output current of each power supply is too large or too small. The alarm current threshold and time threshold are configurable and are not enabled by default. The alarm information is reported to the third-party remote operation and maintenance platform through the network;
After the device is powered off and then on again, it automatically enters the configured preset mode, including: fully on, fully off, and restoring the state before the power failure ;
8 groups of timers, which can be combined arbitrarily; support configuration of switch timing for each output, and the cycle period can be configured to be executed only once or every day, week, month, etc .;
The front panel has a national standard 5-core socket for long power supply; the rear panel has 5 national standard 5-hole sockets and 3 universal 3-hole sockets , of which 8 sockets on the rear panel can be controlled ;
The front panel has an LCD screen that polls and displays device working information, such as: device name/device model/software and hardware version, network information (IP address/MAC address), system date, current/voltage/total power statistics of each channel, and can monitor the status of each channel ;
The front panel has 1 LOCK anti-accidental touch lock indicator light, 1 PWR main power light, 1 LINK network light, 1 RUN operation light, and CH1~CH8 channel working status lights.
Rear Panel
Hot Tags: smart operation and maintenance power manager, China smart operation and maintenance power manager manufacturers, suppliers, factory, MIDIS AV Over IP Server, midis av over ip systems, 4K60 4 4 4 Network AV Encoder Decoder, network audio distribution, network speaker, Vailink Rectangular Columnar Condenser Microphone
SPECIFICATIONS
|
Hardware Function |
|
|
Mode Settings |
Support configuration of device working modes, including: sequencer mode, relay mode; The device defaults to sequencer mode, in which the order and delay of each channel switch can be configured; in relay mode, each channel switch can only be controlled by manual buttons, web backend, or control commands; |
|
Power output switch |
Support on/off control of 8 power output interfaces through the web page background and the control buttons on the front panel of the device; It also supports full on/off control of 8 power output interfaces ; |
|
Power interface type |
The front panel has one national standard 5-core socket for long power supply; the rear panel has five national standard 5-hole sockets and three universal 3-hole sockets , of which eight sockets on the rear panel can be controlled . |
|
Central control interface |
1-way RS232 control , 1-way RJ45 network control; |
|
USB interface |
1 TYPE-A interface for software upgrade ; 1 TYPE-B interface , used for equipment debugging; |
|
LCD display |
LCD screen polling display, such as: device name/device model/software and hardware version, network information (IP address/MAC address), system date, current/voltage/total power statistics of each channel ; |
|
LED working indicator |
The front panel has 1 LOCK anti-accidental touch lock indicator light , 1 PWR main power light , 1 LINK network light , 1 RUN operation light , and the front panel displays the output working status lights of CH1~CH8 channels ; |
|
Anti-accidental touch key lock |
To prevent accidental operation , lock or unlock the power output control button through the lock button on the front panel of the device; |
|
Key prompt tone |
When operating the front panel control buttons, there is a prompt sound; |
|
Air switch (overcurrent protector) |
Miniature circuit breaker , 40A , 2P double-pole air switch; |
|
Lightning protection design |
With surge suppression circuit; |
|
Maximum load power |
6500W , voltage 220V , total load output current of the equipment is about 30A, and the maximum output current of a single socket is 10A ; |
|
Input Power |
100-230V AC, 50/60Hz , input comes with 3-core 6-square power cord 1.8 meters bare wire (without power plug) |
|
Factory Reset |
With factory default reset button |
|
Remote Control |
|
|
Built-in WEB page |
Built-in WEB page, supports user login management function, supports each power output control of the device, network, system upgrade, central control and other configurations |
|
User password modification |
Support modifying user login password |
|
Online user statistics |
Support statistics of users currently logging into the device |
|
Remote Operation and Maintenance |
Support third-party platforms to control devices through the network, remotely obtain information such as output voltage, current, power consumption, power consumption, working hours, abnormal alarms, etc. of each channel, remotely switch each channel's output, configure working mode, power-on delay time, timing switch and other parameters; provide network remote control interface (device timing on/off), remote power statistics interface (current output current of each channel, current output power consumption of each channel); |
|
Alarm function |
issuing alarm information when the output current of each power supply is too large or too small , and the alarm current threshold and time threshold are configurable ; Not enabled by default; report alarm information to a third-party remote operation and maintenance platform via the network; |
|
Serial port control |
Support other devices to control the device through the serial port; support configuration of serial port parameters such as baud rate, data bit, parity check, stop bit, etc. |
|
Network Control |
Support TCP/UDP network control protocol; intelligent cascading can be achieved through the RJ45 network interface , and up to 255 intelligent operation and maintenance power managers can be controlled simultaneously ; |
|
Provide device control API |
The device supports providing API interface, is integrated and managed by third-party systems, and provides websocket interface; |
|
Additional Features |
|
|
Advanced permission to prevent accidental touch network lock |
Administrators can log in to the web and configure to lock or unlock all control buttons on the front panel of the device to prevent accidental touches. Unlocking can only be done after passing the administrator authority verification; |
|
Ordinary anti-accidental touch key lock |
Support locking or unlocking the power output control button through the lock button on the front panel of the device; |
|
Channel delay function |
When fully open or fully closed, the delay time of each channel can be set separately, with a maximum delay of 999 seconds and a default delay of 1 second ; |
|
Restore Memory Mode |
After the device is powered off and then on again, it automatically enters the configured preset mode, including: fully on, fully off, and restore to the state before power failure |
|
Timer |
8 groups of timers, which can be combined arbitrarily; support configuration of switch timing for each output, and the cycle period can be configured to be executed only once or every day, week, month, etc.; |
|
Work status query |
Support querying working status parameters such as output voltage, output current, power, power consumption, working hours, etc. for each channel; support querying working status parameters through web or other platforms; |
|
Output power statistics |
Statistics of electricity consumption of 8 output ports; Support querying statistical information through the web or other platforms; the power can be manually reset; |
|
System Management |
|
|
System Information |
Support web display of device information such as device name, device type, device model, software and hardware version, MAC address, etc. |
|
Modify the device name |
Supports modifying device name via Web; |
|
System Configuration |
Support configuration of time synchronization, NTP, bridging and other functions; |
|
Services List |
Supports management of basic system services, monitors the status of each basic system service, and can start and stop system service programs; |
|
WebDav |
Support uploading, downloading, creating, modifying and other operations on files on the device through the web; |
|
Network Configuration |
Support network IP address, subnet mask, default gateway, DNS and other configurations; |
|
Control Protocol |
Support serial port protocol, TCP\UDP network protocol; |
|
Physical Parameters |
|
|
Work Environment |
Temperature -10℃-50℃, humidity 10~80%, recommended altitude ≤ 2000 meters |
|
Storage environment |
Temperature -40~65℃, humidity 0~95%, recommended altitude ≤ 2000 meters |
|
Equipment size (width*height*depth) |
436.8 mm *50 mm *300 mm |
|
Product Weight |
Bare weight 4.5KG, packaged weight 5.4KG |
