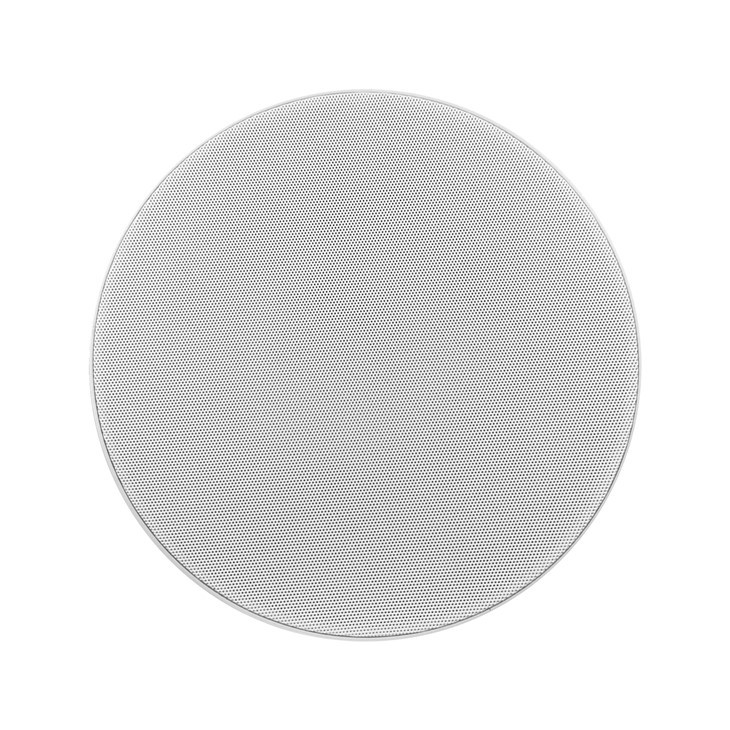

Amber SC08P Overview
Amber series powered speakers are designed for intelligent network system construction and have digital and analog dual-link backup inputs . This series of powered speakers uses TENDZONE's proprietary audio processing technology to achieve natural sound playback and inherit TENDZONE's good sound quality. It uses TENDZONE Vailink network transmission protocol and realizes network audio transmission through the RJ45 network interface with mutual backup function. It provides stable and safe protection for major integration projects.
Features
Built-in digital signal processing, using Chinese Rockchip ARM as the processing and management core
Support PoE++/PoE+ power supply
Adopting Vailink network audio transmission protocol, it seamlessly connects with AI audio algorithm processing service platform. The platform design software can uniformly design signal routing and management, manage multiple devices in a unified manner, and remotely switch devices on and off
2 Vailink gigabit network interfaces, supporting dual-link transmission and redundant backup. If one link fails, it will automatically and seamlessly switch to the other link
The platform software can remotely monitor the working status of the speaker, including: output current, output voltage, temperature, output protection status warning, amplifier module channel mute status display, output limit warning

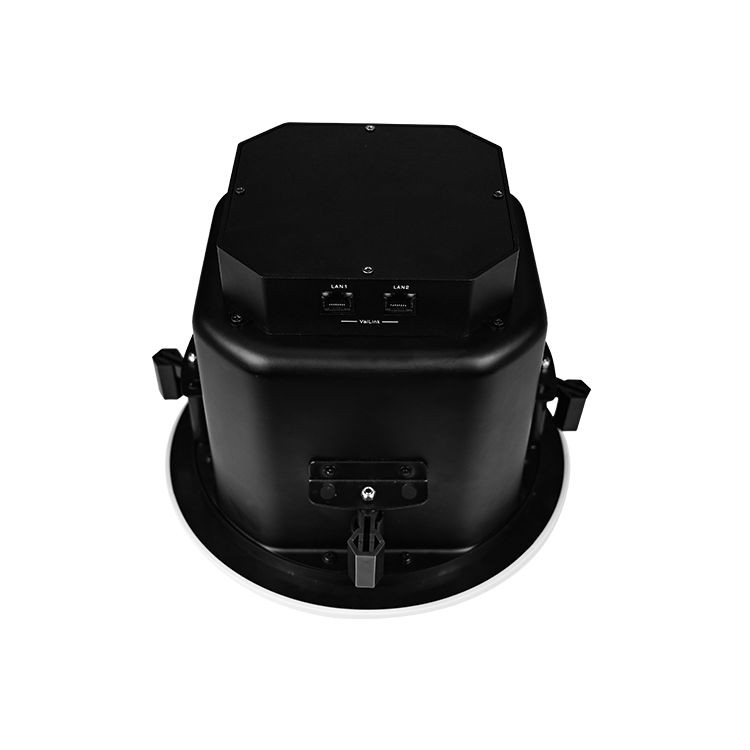

Rear Panel
Hot Tags: 8' vailink network coaxial ceiling speaker, China 8' vailink network coaxial ceiling speaker manufacturers, suppliers, factory, iot control products, 4 5 Vailink Network Powered Column Speaker, 4K Binocular Intelligent Teaching Student Camera, condenser microphone, MIDIS AV Over IP Server, 12x8 Fixed Dante Audio Processor
SPECIFICATIONS
|
General Parameters |
|
|
Model |
Amber SC08P |
|
Low Frequency Unit |
8 inches |
|
High Frequency Unit |
1 inch coaxial horn tweeter |
|
Speaker Rated Power |
60W(POE++) |
|
Maximum SPL |
106dB continuous, 109dB peak |
|
Frequency Response (-10dB) |
70Hz-20kHz |
|
Coverage Angle |
H90°×V90° |
|
Working Mode |
Adopt dual power amplifier drive: low frequency, high frequency; signal processing: domestic ARM |
|
Functions |
|
|
Connection |
Vailink protocol, 2 RJ45, 1000M/100M adaptive, dual-link transmission & management, automatic switching |
|
Management |
Centrally managed by the audio algorithm processing service platform, seamless connection |
|
Remote Switch |
The platform remotely manages the device's switch |
|
Working Status Monitoring |
Output current, output voltage, load, temperature, output protection status warning, mute status display, output limit warning |
|
Device Search |
Remote search, speaker brand backlight flashes |
|
Display Screen |
1.5-inch LCD display, can display device information and parameters, can turn pages and confirm parameters through encoder |
|
User Control |
Supports adjusting volume, mute, and page |
|
Electrical and Physical Parameters |
|
|
Power Supply |
PoE++/PoE+, 802.3bt, compatible with 802.3at |
|
Operating Temperature |
0~45℃ |
|
Dimensions |
Φ320×285mm |
|
Installation Hole Size |
Φ290mm |
|
Weight |
4.7 kg |
Application
Meeting Rooms
Conference Center
House of Worship
Courtrooms
Classrooms
Training Rooms
Hotels
Lecture Halls
All Hand Space
