Product Overview

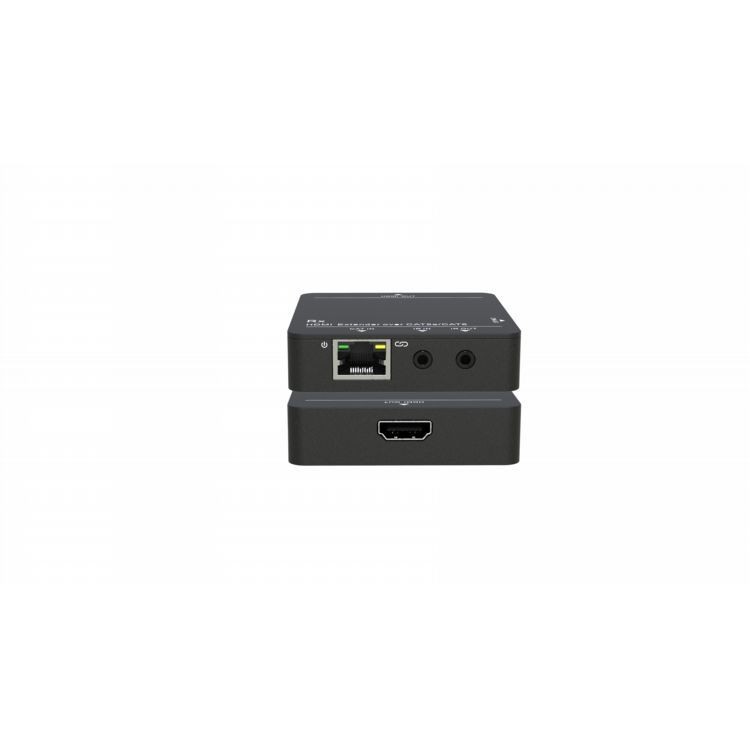

The Tendzone UHD260-EX70 set is a professional point-to-point extender that supports 1080P@60Hz video signals and infrared signals. It provides up to 55 meters of transmission distance for 1080P@60Hz through a single CAT5e/6 cable. Supports HDCP1.4. Built-in EDID makes this product compatible with most displays and source devices. Using advanced power design (PoC) technology, only power is supplied to the transmitter, and the receiver can be powered through the CATx cable and no dual power supply is required. The devices support direct infrared transmission between each other. It meets the requirements of various audio, video and infrared control scenarios.
Features
- Supports HDMI V1.3, up to 1080P@60Hz, HDCP 1.4
- Extends signal to 1080p ≤ 55m (CAT5e) or 1080p ≤ 70m (CAT6) via a single cable
- HDMI loop-through on transmitter
- Bidirectional infrared transmission
- Visually lossless compression, no delay
- Compact design, easy to install, simple to operate
Hot Tags: 2k60 hdmi extender 70m, China 2k60 hdmi extender 70m manufacturers, suppliers, factory, Transcoding Media Service Platform, teaching cameras, network speaker, audio over ip, 8 Vailink Network Coaxial Ceiling Speaker, 16x8 Fixed Dante Audio Processor
Specifications
|
Audio and video input/output (transmitter) |
|
|
Input |
HDMI |
|
Input Connector |
Type A 19 -pin female connector |
|
Output |
HDMI |
|
Output Connectors |
RJ-45 terminal |
|
Audio and video input/output (receiver) |
|
|
Input |
CAT |
|
Input Connector |
RJ-45 terminal |
|
Output |
HDMI |
|
Output Connectors |
Type A 19 -pin female connector |
|
Control (transmitter) |
|
|
Port |
1 channel IR IN signal ; 1 channel IR OUT signal; 1 channel RJ45 control signal |
|
Connectors |
3.5 mm mini jack |
|
Control (receiver) |
|
|
Port |
1 channel IR IN signal ; 1 channel IR OUT signal; 1 channel RJ45 control signal |
|
Connectors |
3.5 mm mini jack ; |
|
General |
|
|
Transmission distance |
1080p@60 Hz ≤55m( CAT 5E) 1080p@60 Hz ≤70m( CAT 6) |
|
EDID Management |
Built-in EDID |
|
Comply with |
HDMI V1.3 & HDCP1.4 |
|
Operating temperature |
-10 ~ 55 ℃ |
|
humidity |
10% ~ 90% |
|
External power supply |
Input: 100 VAC ~240 VAC , 50/60 Hz output : 5VDC 1A |
|
Maximum total power consumption |
4W |
|
Chassis size |
66 mm x 16.8 mm x 66 mm |
|
Product weight |
45g (transmitter) 40g (receiver) |
