Overview
SKY-4611 is a multimedia distributed interactive system integrated encoder or decoder, an integrated codec device, supports manual switching to encoding or decoding node, system deployment supports both centerless and center deployment modes, which can be selected on demand in the project . When used as an encoding node, it supports3 840 * 2160@60 video signal acquisition and encoding; when used as a decoding node, it supports 8K@60 video decoding and 3840 x 2160@60 output display .
Features
High definition, multi-function
- Support 8K@60 video decoding, 3840*2160@60 resolution output display;
- Support 3840*2160@60 resolution signal acquisition and encoding;
- Support KVM agent application.
Intelligent splicing, unified management
- Supports synchronous display of LED/LCD screen splicing images;
- Supports unified management and control of distributed system platform software;
- Supports video image windowing, cross-screen, roaming, and overlay display.
Safe and reliable
- Domestic chips, embedded Linux system, virus-free;
- Support PoE power supply and external power supply backup;
- Support video input and output redundant backup;
- Support optical link backup.
Easy maintenance
- Fanless and silent design;
- Integrated design, manually switch to encoding or decoding;
- Support 2 side-by-side installation; Support 8 centralized installation;
- Support web page upgrade.

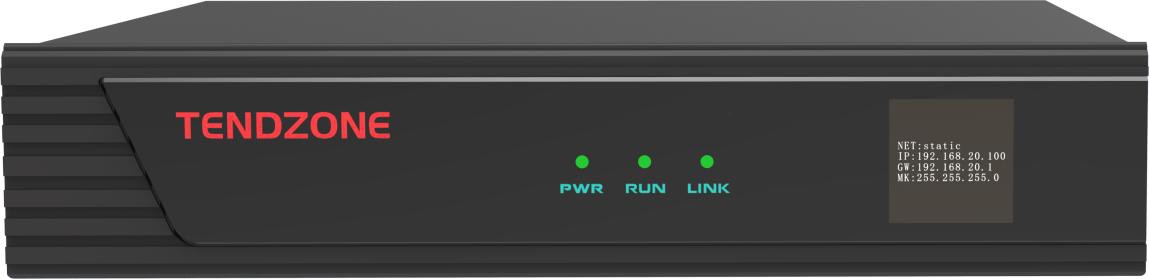

Front Panel
(1) Power indicator (2) Working indicator (3) Connectivity indicator (4) LCD display
Rear Panel
(1)Ground terminal
(2)3.5mm headset jack
(3)MIC IN microphone input port
(4)LINE IN stereo input port
(5)LINE OUT stereo output port
(6)RELAY low-voltage relay port
(7)I/O port
(8)IR infrared control port
(9)RS232 control port
(10)RS485 control port
(11)debug port
(12)12VDC power port
(13)HDMI IN1 input (with audio)
(14)HDMI IN2 input (with audio)
(15)HDMI OUT1 output (with audio)
(16)HDMI OUT2 output (with audio)
(17)USB3.0 Type-A host port
(18)USB2.0 Type-A host port
(19)Forced upgrade switch or factory reset (press and hold for 10 seconds)
(20)Type- C port (upgrade)
(21)SFP Gigabit optical network port
(22)PoE Gigabit Ethernet port
Hot Tags: 4k60 4:4:4 network av encoder/decoder, China 4k60 4:4:4 network av encoder/decoder manufacturers, suppliers, factory, 16x16 Web Based Audio Processor, Vailink 2CH Analog Input Adapter, education solution, 8' Vailink Network Coaxial Ceiling Speaker, 8x8 Vailink I/O Interface, iot control products
SPECIFICATIONS
|
General Performance |
||
|
Hardware Configuration |
Domestic codec chip, self-controllable ; developed based on embedded Linux system , no risk of virus or Trojan intrusion; |
|
|
Front Panel |
The LCD screen is 1.3 inches in size and displays the device name, device model, hardware version, software version, serial number, and IP address information ; 3 status indicators: PWR, RUN, and LINK; |
|
|
Video Interface |
2- way HDMI video input; 2-way HDMI video output; Support HDMI fixed buckle; |
|
|
Audio Interface |
1-way 3.5mm headphone jack input; 1 balanced MIC audio input, supporting phantom power supply; 1 balanced LINE audio input ; 1 balanced LINE audio output; |
|
|
Data Interface |
1-way USB 3.0 Host; 1-way USB 2.0 Host; 1 type-c interface, supports OTG; |
|
|
Control interface |
1 relay; 1 IO; 1 IR; 1 RS232; 1 RS485; 1 RS232 debug port; |
|
|
Power interface |
1 DC power interface, 12V/2A input; |
|
|
Device power consumption |
≤ 12 W ; |
|
|
Leakage protection current |
0.25mA |
|
|
Work Environment |
Temperature 0~45℃; Humidity 10% to 90%; Altitude less than or equal to 5,000 meters; |
|
|
Storage Environment |
Temperature -20℃～60℃; Humidity 5% to 90%; Altitude less than or equal to 5,000 meters; |
|
|
Installation |
Two 1U cabinets installed side by side; |
|
|
Size |
Product size: 220*190*45mm; Packing size: 560*408*135mm; Net weight: 1.28KG; Gross weight: 4.12KG; |
|
|
Network Interface |
1 1 000Mbps optical network port; 1 1 000Mbps Ethernet port, supporting POE power supply; |
|
|
decoding |
coding |
|
|
Video Input and Output |
1 channel 3840 * 2160 @ 60 fps video output; 1 channel 3840 * 2160 @ 60 fps output redundancy backup; Supports 3840 * 2160 @60fps output resolution, which is backward compatible, and supports custom resolution output; |
1 channel 3840 * 2160 @60fps video loop-out, 1 of 2 loop-out interfaces; 1 channel 3840 * 2160 @60 video input and encoding, 1 channel video input redundant backup; |
|
Video Codec |
Support H 264/H265 video decoding; Support 8K @ 60 video decoding; |
Support H 264/H265 video encoding; support encoding three streams simultaneously; Support encoding resolution setting, with 1080P / 720P / FD1 / CIF options; Supports custom transmission bit rate, bit rate adjustment range 128Kbps~100Mbps ; supports frame rate adjustment range 5~60 frames; |
|
Audio Input and Output |
1-way 3.5mm headphone jack input; 2 -way HDMI OUT audio output ; 1 balanced LINE audio output; 1-way 3.5mm headphone jack output ; |
1-way 3.5mm headphone jack input; 1 balanced MIC audio input, supports phantom power supply; 1 balanced LINE audio input; HDMI interface audio input; HDMI loop - through interface audio output; |
|
Audio Codec |
AAC dual-channel, G.711a, G.711u, G.722, O PUS audio protocols, 48KHz 24-bit sampling rate; |
Support AAC, G.711a, G.711u, G.722 audio format encoding, 48KHz 24-bit sampling rate; |
|
Video Recognition |
Supports automatic identification of EDID extended display identifier; Support HDCP copyright protection technology; Compatible with progressive scan P system and interlaced scan i system input; |
|
|
Network Communication |
Support cross-segment communication; Support DH CP to dynamically obtain IP address; Support RTSP/RTP protocol; Support unicast and multicast; |
|
|
Equipment Operation and Maintenance |
Supports obtaining device process survival information, memory usage information, running time information, CPU occupancy rate, and disk usage operation and maintenance information; Support web page configuration; Support network configuration, device upgrade, restart, log export, configuration import/export, clear user configuration, and factory restore; |
|
|
Subtitles/Background |
Support background settings; Support subtitle settings ; Support banner display; |
|
|
Application |
Support KVM agent application; Support splicing display applications; Support ultra-high-resolution video synchronization application; |
|
