Amber SL404 Overview
Amber series powered speakers are designed for intelligent network system construction and have digital and analog dual-link backup inputs . This series of powered speaker uses TENDZONE's proprietary audio processing technology to achieve natural sound playback and inherit TENDZONE's good sound quality .
It uses TENDZONE Vailink network transmission protocol and realizes network audio transmission through the RJ45 network interface. It also has an XLR-Fanalog input interface, which serves as a link backup for network audio transmission, with network priority and automatic switching. It provides stable and safe protection for major integration projects.
Features
Basic Functions
- Built-in digital signal processing, using Chinese Rockchip ARM as the processing and management core
- Built-in dual-channel intelligent digital power amplifier, the speaker is driven in bi-amp mode
- Adopting Vailink network audio transmission protocol, it seamlessly connects with AI audio algorithm processing service platform. The platform design software can uniformly design signal routing and management, manage multiple devices in a unified manner, and remotely switch devices on and off
- 2 Vailink gigabit network interfaces, supporting dual-link redundant backup. If one link fails, it will automatically and seamlessly switch to the other link
- 1 XLR analog input interface , automatically switches to analog input link when network links fail
Operation and Maintenance Management
- Built-in electret omnidirectional professional test microphone to monitor the sound restoration status of the speaker in real time
- The platform software can remotely monitor the working status of the speaker, including: output current, output voltage, temperature, output protection status warning, amplifier module channel mute status display, output limit warning
- It has the function of device search, which can be queried remotely and let the device display location reminder
- Color LCD display, which can display device information and parameters, and can turn pages and confirm parameters through encoder

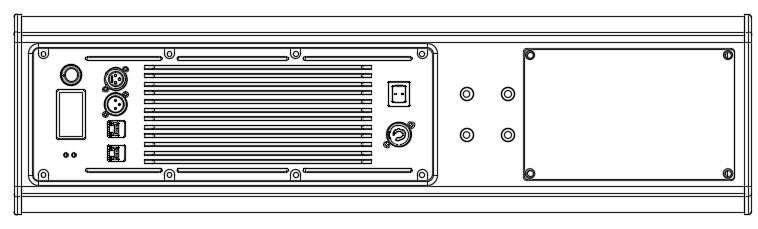

Rear Panel
Hot Tags: 4.5' vailink network powered column speaker, China 4.5' vailink network powered column speaker manufacturers, suppliers, factory, 4K60 4 4 4 Network AV Encoder Decoder, full frequency speaker, 16x16 Web Based Audio Processor, audio dsp processor, Audio DSP, Vailink 2CH Analog Output Adapter
SPECIFICATIONS
|
General Parameters |
|
|
Low Frequency Unit |
4x4.5 inches |
|
High Frequency Unit |
1 inch |
|
Speaker Rated Power |
230W |
|
Maximum SPL |
118dB continuous, 124dB peak; |
|
Frequency Response (-10dB) |
118Hz-19kHz |
|
Coverage Angle |
100° x 50° |
|
Working Mode |
Adopt dual power amplifier drive: low frequency, high frequency; signal processing: domestic ARM |
|
Installation |
Bracket, wall mount, hoisting; |
|
Functions |
|
|
Connection |
Vailink protocol, 2 RJ45, 1000M/100M adaptive, dual-link transmission & management, automatic switching |
|
Analog Input |
XLR-F balanced input; maximum input level: 20dBu, dynamic range: >110dBA, frequency response: 20Hz-20kHz (±0.2dB) |
|
Analog Output |
XLR-M balanced output, analog loop-out or processed output; maximum output level: 20dBu, dynamic range: >110dBA, frequency response: 20Hz-20kHz (±0.2dB) |
|
Management |
Centrally managed by the audio algorithm processing service platform, seamless connection |
|
Remote Switch |
The platform remotely manages the device's switch |
|
Signal Selection & Link Backup |
Network and mode input, three-link backup transmission function, automatically switch to analog input when network transmission fails |
|
Health status |
Built-in electret omnidirectional professional test microphone, which can monitor the sound restoration status of the speaker in real time |
|
Working status monitoring |
Output current, output voltage, load, temperature, output protection status warning, mute status display, output limit warning |
|
Device Search |
Remote search, speaker brand backlight flashes |
|
Display screen |
1.5-inch LCD display, can display device information and parameters, can turn pages and confirm parameters through encoder |
|
User Control |
Supports adjusting volume, mute, and page |
|
Electrical and Physical Parameters |
|
|
Power Interface |
Neutrik PowerCon |
|
Power Switch |
Ship Type Switch |
|
Amplifier Power |
800W |
|
Amplification Type |
Using Class D technology, the conversion efficiency can reach 90%@360 W |
|
Operating Voltage |
AC100V-240,50/60Hz |
|
Operating Temperature |
0~45℃ |
|
Dimensions (W x H x D) |
198mm x 730mm x 246mm |
|
Weight |
13kg |
Application
Meeting Rooms
Conference Center
House of Worship
Courtrooms
Classrooms
Training Rooms
Hotels
Lecture Halls
All Hand Space
