Shenzhen Tendzone Intelligent Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 2ch digital power amplifier in China. Please feel free to wholesale high quality 2ch digital power amplifier made in China here from our factory. We also accept customized orders.
Overview

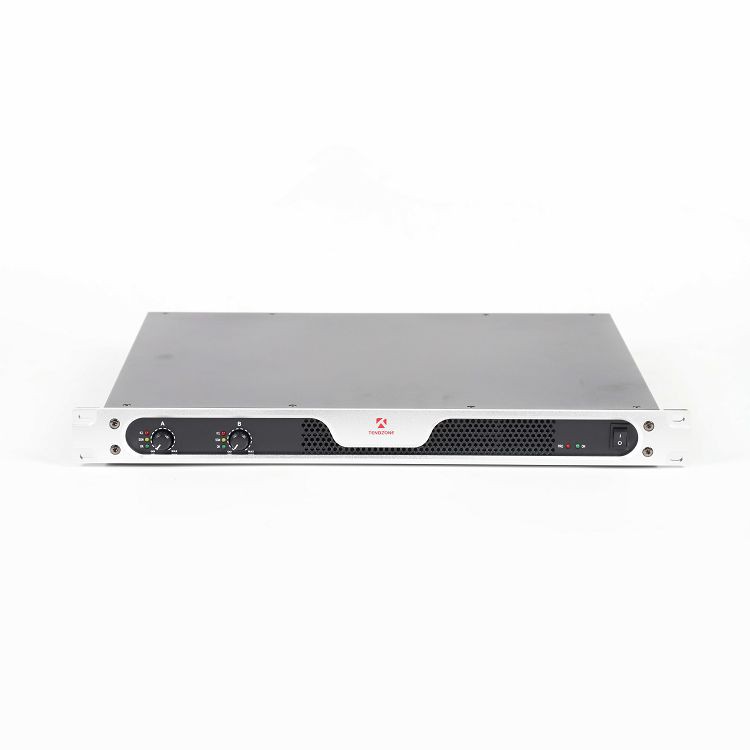

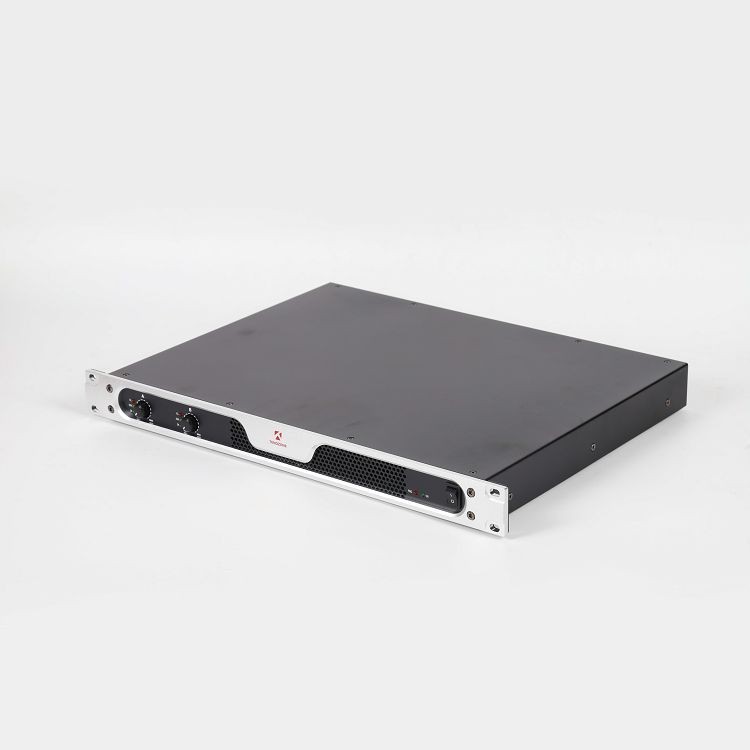

The Tendzone ADM2150 amplifier is a high-efficiency digital amplifier, utilizing advanced Class D technology, designed specifically for users who seek exceptional sound quality and convenience. This amplifier boasts an efficiency of over 90%, ensuring stable output even under heavy load, providing robust support for your audio equipment.
With its ultra-slim 1U design, this amplifier is lightweight and incredibly easy to carry and install, making it perfect for various performances and sound systems. Additionally, it features comprehensive protection functions, including automatic limit output, short circuit, overload, overheating, and power-on delay, ensuring your equipment operates safely in any environment, thus extending its lifespan. Furthermore, the amplifier includes a delay startup system to effectively protect speakers from impact, preventing potential damage.
Features
- Using Class D technology, the conversion efficiency can reach more than 90%;
- 1U design, light body, easy to carry and install;
- Automatic limiting output, short circuit, overload, over temperature, power-on delay and other protection functions;
- The amplifier is equipped with a delayed start system to protect the speakers from damage due to impact;
- The rear panel is equipped with dual-channel, single-channel, and bridge output conversion;
- Balanced input interface, SPEAKON output;
- The amplifier switching power supply has a separate cooling system;
- The cooling fan is controlled by advanced stepless speed-changing circuit.

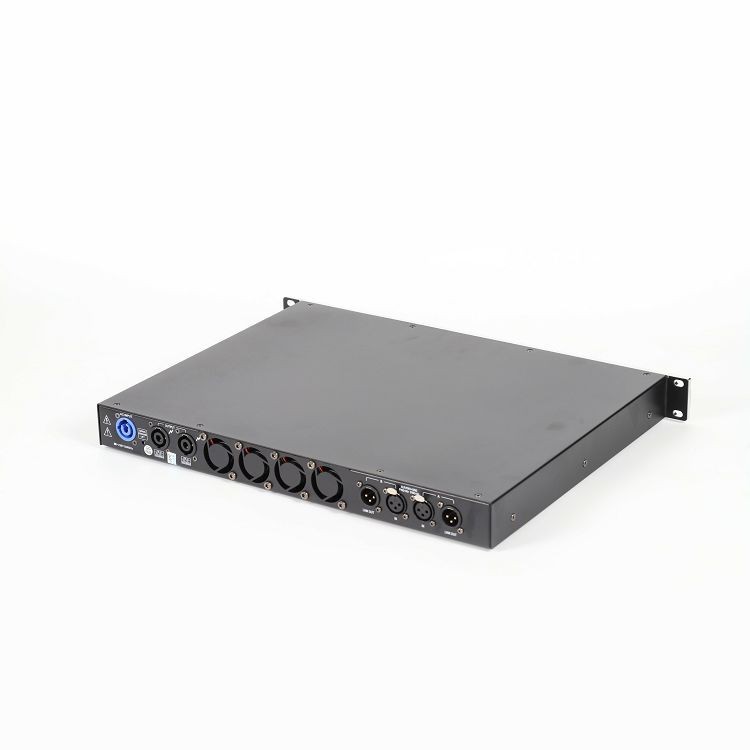

Rear Panel
Hot Tags: 2ch digital power amplifier, China 2ch digital power amplifier manufacturers, suppliers, factory, 6 Vailink Network Coaxial Ceiling Speaker, 8 Vailink Network Powered Full range Speaker, condenser microphone, education solution, web based audio processors, Normalized Recording and Broadcasting Classroom Terminal
SPECIFICATIONS
|
General Performance |
|
|
Number of channels |
2 aisle |
|
Stereo mode @8Ω, each channel |
150W |
|
Stereo mode @4Ω, each channel |
250W |
|
Bridge mode @8Ω |
500W |
|
Frequency Response |
20 Hz -20 kHz (±3 dB ) |
|
Signal-to-Noise Ratio/S/N |
≥80dB |
|
Total Harmonic Distortion |
≤0.05% ( 8Ω, 150W) |
|
Input sensitivity |
+4dB * (1.23V) |
|
Input Impedance |
10kΩ(electronically balanced) |
|
Dimensions (W x H x D) |
483×45×240 (mm) |
|
net weight |
3.4kg |
|
Input (CH1-2) |
XLR Input Connectors |
|
Output (CH1-2) |
SPEAKON output |
Application
Meeting Rooms
Conference Center
House of Worship
Courtrooms
Classrooms
Training Rooms
Hotels
Lecture Halls
All Hand Space
