Overview

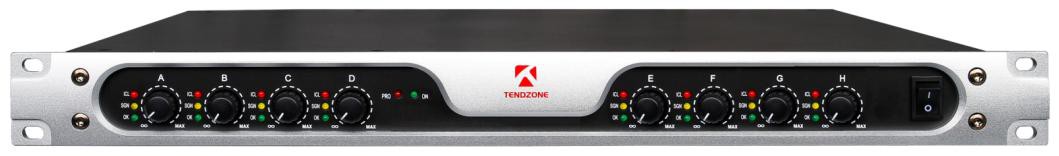

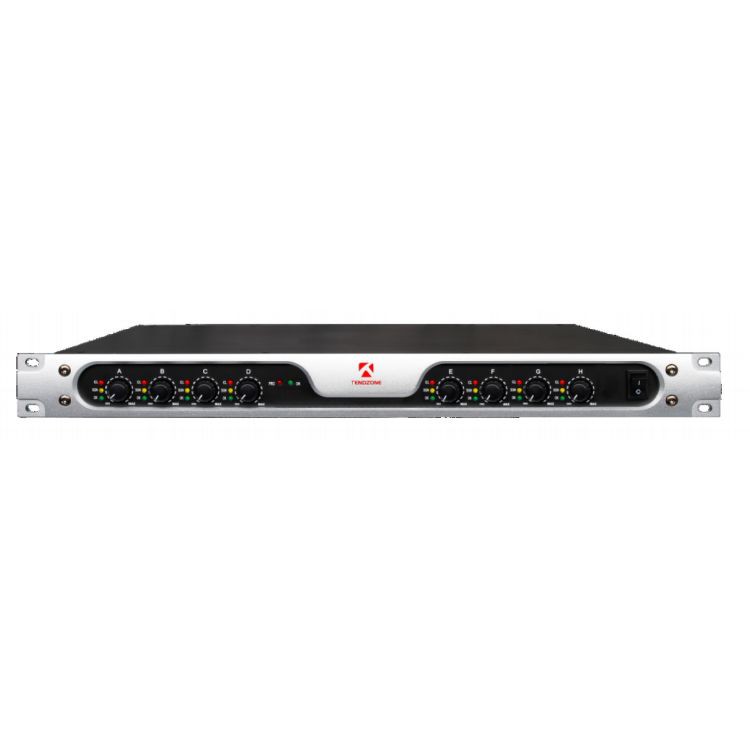

The Tendzone AMD8150 amplifier is a 8-channel fixed impedance digital amplifier, using advanced Class D technology, designed for users who pursue excellent sound quality and convenience.
This amplifier boasts an ultra-slim 1U design, making it lightweight and exceptionally portable, ideal for a range of performances and sound systems. It comes equipped with extensive safety features, including automatic limit output, short circuit protection, overload safeguards, overheating protection, and a power-on delay, all of which ensure safe operation and longevity of your equipment in any setting. Additionally, a delay startup system is incorporated to protect the speakers from sudden impacts, preventing potential damage.
The rear panel offers versatile output options, including dual-channel, single-channel to accommodate various application requirements. It also includes balanced input interfaces and SPEAKON outputs, ensuring stable and reliable connections.
Features
- Compact and Lightweight Design: The amplifier features a 1U form factor, making it easy to transport and install.
- High Efficiency: Utilizing Class D technology, it achieves a conversion efficiency exceeding 90%.
- Comprehensive Protection Features: It includes automatic limiting output, short circuit protection, overload safeguards, over-temperature protection, and a power-on delay.
- Speaker Protection: The amplifier is designed with a delayed start system to shield the speakers from damage caused by sudden power application.
- Versatile Output Options: The rear panel offers options for dual-channel, single-channel, and bridging output configuration to suit various applications.
- Reliable Connections: It is equipped with a balanced input interface and SPEAKON output for secure and dependable connections.
- Efficient Cooling System: The amplifier's switching power supply includes a dedicated cooling system for optimal performance.
- Advanced Cooling Mechanism: The cooling fan operates with a sophisticated stepless speed-changing circuit for efficient heat management.

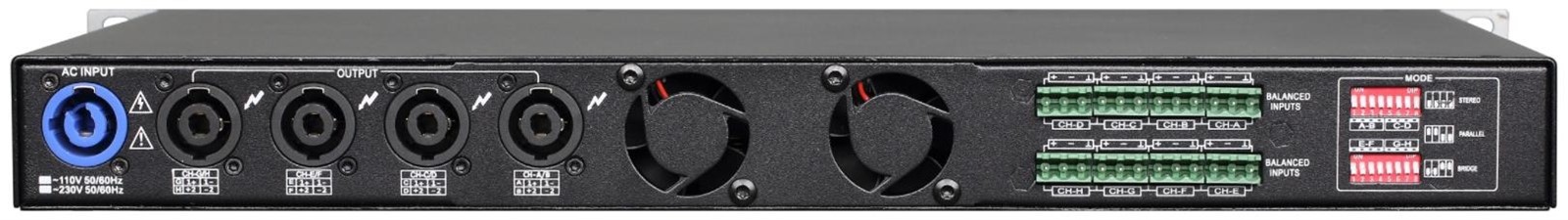

Back Panel
Hot Tags: 8ch digital power amplifier, China 8ch digital power amplifier manufacturers, suppliers, factory, condenser microphone, Audio interface, 8x8 Vailink I O Interface, Coaxial Ceiling Speaker, Vailink Rectangular Columnar Condenser Microphone, IP ceiling speaker
SPECIFICATIONS
|
General Performance |
|
|
Number of channels |
8 |
|
Stereo mode @8Ω, each channel |
150W |
|
Stereo mode @4Ω, each channel |
250W |
|
Frequency Response |
500W |
|
Signal-to-Noise Ratio/S/N |
20 Hz -20 kHz (±3 dB ) |
|
Total Harmonic Distortion |
≥80dB |
|
Input sensitivity |
≤0.05% ( 8Ω, 150W) |
|
Input Impedance |
+4dB * (1.23V) |
|
Dimensions (W x H x D) |
10kΩ(electronically balanced) |
|
net weight |
483×45×355 (mm) |
|
Input (CH1-2) |
5.5kg |
|
Output (CH1-2) |
XLR Input Connectors |
