Overview

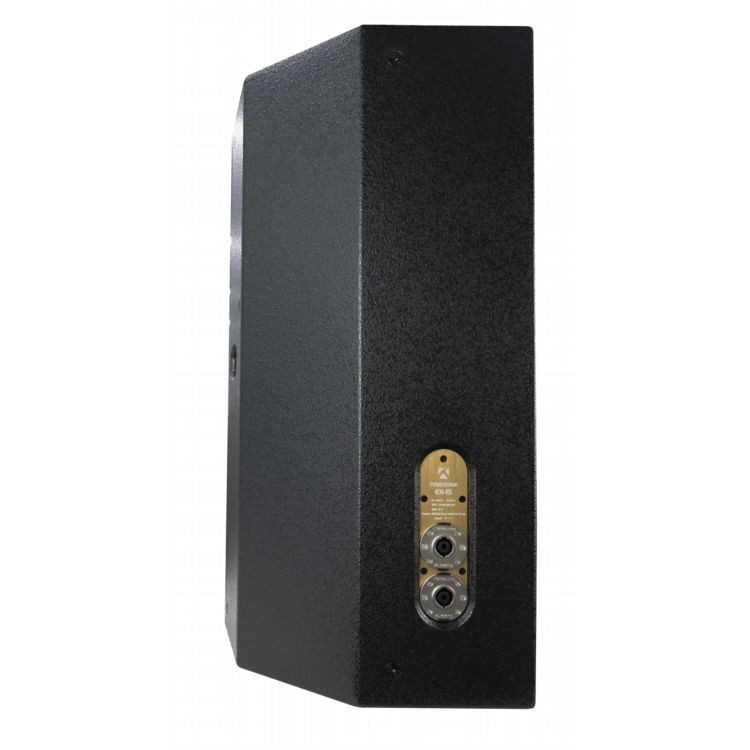

The Tendzone EX-15 speaker is a multifunction audio speaker that utilizes a compression-type CD high-frequency unit alongside a high-performance magnetic low-frequency unit. It delivers strong power output, ensuring that speech is both rich and clear. The design includes several M8 rigging points, enabling flexible installation from various angles, whether suspended or mounted on supports. Its trapezoidal shape permits flat positioning on the floor for monitoring purposes. This speaker is well-suited as the main amplification source for medium-sized venues such as meeting rooms, malls, and classrooms, and can also function as an auxiliary sound system in larger locations like auditoriums and command centers.
Hot Tags: 15' full-range conference speaker, China 15' full-range conference speaker manufacturers, suppliers, factory, 8x8 Web Based Dante Audio Processor, ceiling array microphones, Audio Signal processing, Audio interface, DANTE Microphone, Multimedia ClassroomTerminal
SPECIFICATIONS
|
General Performance |
|
|
Type |
15-inch two- way full- range speaker |
|
Frequency range (-10dB) |
61.5Hz-20kHz |
|
Axial sensitivity |
9 8 dB/1W/1m |
|
Impedance |
8ohms |
|
Maximum sound pressure level |
Continuous: 123dB |
|
Rated Power |
350W |
|
Long term maximum power |
700W |
|
Peak Power |
1400W |
|
Coverage Angle |
H80°×V50° |
|
Low frequency unit |
15" unit × 1 |
|
High frequency unit |
1" throat 1.7" voice coil |
|
Box material |
High density board, water-based paint |
|
Input Connectors |
2×NL4 speaker socket |
|
Hanging point |
18 M8 |
|
Handle |
have |
|
Color |
black |
|
Installation |
Wall mount, ceiling mount, floor monitor, tripod mount |
|
Gross weight/net weight |
28 kg /24.5kg |
|
Dimensions (H x W x D) |
720x427x390mm |
