Product Overview

This high-performance professional switching device effectively manages audio and video signals, making it ideal for a variety of applications including broadcasting and television projects, multimedia conference halls, large-screen displays, television teaching, and command/control centers.

Supports various signal formats including CVBS, YPbPr, VGA, DVI, HDMI, 3G/HD/SD-SDI, HDBaseT, and Optical, ensuring seamless switching and transmission between different input/output types

Features

32-input and 32-output audio and video signal switching card interface ;
Bus switching technology, each signal can not only be transmitted point-to-point, but also transmitted through a bus channel alone, ensuring real-time display of all signal images;
Frequency and line doubling technology can enhance the display of image signals by doubling the line and frequency;
Seamless cross-switching , with no black screen, stuck screen, jitter, tearing, etc. during the switching process;
Multiple signal types are available : CVBS, YPbPr, VGA, DVI, HDMI, 3G/HD/SD-SDI, HDBaseT, Optical;
The resolution is adjustable, supporting up to 4096 x 2160P@60Hz ;
Support output channels to be closed or opened individually or in full;
The seamless input card supports the OSD custom character overlay screen display function , which can overlay and display custom Chinese content on any input channel at the upper left, lower left, upper right, lower right, etc. , and the character color can be set;
Support RS232 serial port, TCP/IP network, front panel control , open control protocol;
Support GUI user interface control and humanized design;
modifying and customizing EDID information ;
Support the current device input and output channel status query function;
Support multiple scene saving and calling;
The signal port supports hot plugging.

Hot Tags: 32x32 hybrid modular video matrix, China 32x32 hybrid modular video matrix manufacturers, suppliers, factory, Vailink 2CH Analog Output Adapter, 16x16 Web Based Audio Processor, 6 Vailink Network Coaxial Ceiling Speaker, audio processor, network adapters, teaching cameras

Host
describe	Supports up to 32 input and 32 output audio and video signal switching card interfaces, supports hot swapping
control
Serial control port	DB9 RS232 Female Connector
Pin Configuration	Pin 2 TX, Pin 3 RX, Pin 5 GND
Panel chassis structure	Pluggable signal , 8 input card slots can be inserted with 8 signal input cards, 8 output card slots can be inserted with 8 signal output cards
Front Panel Controls	Button
conventional
Operating temperature	-0～+50℃
Relative humidity	10%～90%
power supply	AC 100～240V , 50/60Hz , host no-load power consumption 60W, excluding board
Chassis size (mm)
VMC-32-04: 436.6L x 320.0W x 221.5H

Input Signal Card-VMC-4I-HD-4K

Input signal	4-channel HDMI signal, 4-channel analog audio signal	Power consumption	12.5W
Input Connectors	Type A 19-pin female, 3-pin pluggable terminal block	Color Depth	8bit
Signal Type	HDMI, DVI-D, automatic identification of input signals	bandwidth	10.2Gpbs
temperature	0℃～ +50℃	humidity	10% ～ 90%
Resolution	Maximum input resolution 4096 x 2160P@60Hz , input adaptive
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
standard	Support HDMI1.4, HDCP2.2
EDID Management	Support EDID learning function
Other features	Support chroma, brightness, contrast, color temperature and sharpness value settings, support character overlay function, hot plug

Input Signal Card-VMC-4I-OF

Input signal	4-channel optical fiber signal, automatic input signal recognition	Power consumption	24W
Input Connectors	Fiber Optic Module	Data Types	DVI/HDMI
Maximum rate	10.2Gbps	Relative humidity	10%～90%
temperature	0℃～+50℃	Color Depth	8bit, 10bit, 12bit, 16bit
Fiber Optic Module
Interface Specifications	LC interface
Fiber Optic Signal	9 adjustable resolutions, the highest input resolution is 4096x2160@30Hz
Transmission distance	Need to be used with fiber optic transmitter/receiver, 4096x2160@30Hz single-mode fiber maximum transmission distance is 2KM, multi-mode is 300M
Maximum data rate	10.2Gbit/s
other
Function	Support character overlay function and hot swap

Input Signal Card-VMC-4I-HBT

Video Input
Input signal	4-channel HDBT signal, automatic input signal identification	Input Level	TMDS 2.9V～3.3V
Input Connectors	RJ45, with yellow-green dual-color indicator light	Input Impedance	Differential line 100Ω
Power consumption	21W
Audio Input
Input signal	4-channel stereo signal	Input Connectors	3.5mm audio jack
Input Impedance	75Ω	Frequency Response	20Hz～20K Hz
control
Control Signal	4-way RS232 control signal	Control Port	3-pin pluggable terminal block
protocol	Support RS232 protocol, support IR, RS232 two-way transparent transmission
conventional
Gain	0 dB	bandwidth	10.2Gbps
Resolution	Supports up to 1920×1080@60Hz	Crosstalk	<-50dB@5MHz
Transmission distance	1080p≤70m	Switching rate	200ns (max)
Operating temperature	-10℃～+40℃	Relative humidity	10%～90%
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
HDMI Standard	Support HDMI1.4a
EDID, HDCP	Support EDID manual management, compatible with HDCP1.4
Other features	Supports chromaticity, brightness, contrast, color temperature and sharpness value settings, character overlay function, hot plug and PoH external power supply function

Input Signal Card-VMC-2I-HBT-4K

Video Input
Input signal	2 -channel HDBT signal, automatic input signal recognition	Input Level	TMDS 2.9V～3.3V
Input Connectors	RJ45, with yellow-green dual-color indicator light	Input Impedance	Differential line 100Ω
Power consumption	21W
Audio Input
Input signal	2- way stereo signal	Input Connectors	3.5mm audio jack
Input Impedance	75Ω	Frequency Response	20Hz～20K Hz
control
Control Signal	2- way RS232 control signal	Control Port	3-pin pluggable terminal block
protocol	Support RS232 protocol, support IR, RS232 two-way transparent transmission
conventional
Gain	0 dB	bandwidth	10.2Gbps
Resolution	Supports up to 4096 x 2160P@30Hz	Crosstalk	<-50dB@5MHz
Transmission distance	1080p≤70m	Switching rate	200ns (max)
Operating temperature	-10℃～+40℃	Relative humidity	10%～90%
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
HDMI Standard	Support HDMI1.4 standard
EDID, HDCP	Support EDID manual management, support HDCP2.2 and backward compatible
Other features	Supports chromaticity, brightness, contrast, color temperature and sharpness value settings, character overlay function, hot plug and PoH external power supply function

Input Signal Card-VMC-4I-DV

Input signal	4-way DVI signal	Input Level	TMDS 2.9V～3.3V
Input Connectors	Female port DB24+5	Input Impedance	75Ω
Power consumption	10W
conventional
Gain	0 dB	bandwidth	Maximum data rate 4.95Gbit/s
Video signal	DVI, HDMI, VGA, C-VIDEO, YPbPr, automatic identification of input signals	Maximum time delay	5nS(±1nS)
Data Types	8bit	Crosstalk	<-50dB@5MHz
Switching rate	200ns (max) crosstalk	Resolution	Supports up to 1920× 1200 @60Hz
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
Audio sampling rate	32K, 44.1K, 48K, 88.2K, 96K, 176.4K , 192K
EDID and DDC Management	Supports Extended Display Identification (EDID) and Display Data Channel (DDC), using DVI and HDMI standards
HDCP Management	Supports High-bandwidth Digital Content Protection (HDCP) and uses DVI and HDMI1.3 standards
Other features	Support chromaticity, brightness, contrast, color temperature and sharpness value settings, character overlay function, hot plug

Input Signal Card-VMC-4I-HD

Input signal	4-channel HDMI signal (compatible with DVI), 4-channel analog audio signal	Power consumption	10W
Input Connectors	Type A 19-pin female, 3-pin pluggable terminal block	Color Depth	8 & 10 & 12 bit
Signal Type	HDMI, DVI-D, automatic identification of input signals	bandwidth	6.75Gpbs
temperature	0℃～ +50℃	humidity	10% ～ 90%
standard	Support HDMI1.3, compatible with HDCP standard	Resolution	Supports up to 1920×1080@60Hz
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
EDID and DDC Management	Supports Extended Display Identification (EDID) and Display Data Channel (DDC), using DVI and HDMI standards
Other features	Support chromaticity, brightness, contrast, color temperature and sharpness value settings, character overlay function, hot plug

Input Signal Card-VMC-4I-VG

Video Input
Input signal	4-way VGA signal		Coupling input	AC coupling only
Input Connectors	15-pin D-type female port		Input Level	0.5～2.0Vp-p
Input Impedance	75Ω
Audio Input
Input signal		4 channels of analog audio signals		Audio input impedance	>10KΩ
Input Connectors		3-pin pluggable terminal block		Input Impedance	75Ω
Frequency Response		20Hz～20K Hz
conventional
Gain	0 dB		Bandwidth	YPbPr : 170MHz; C-VIDEO : 150MHz; VGA : 170MHz
Switching rate	200ns(max)		Crosstalk	<-50dB@5MHz
Video signal	VGA (RGBHV), YPbPr, C-VIDEO, automatic identification of input signals
Chroma Space	Supports adjustment of color space: YCBCR\RGB			Resolution	Supports up to 1920×1200 @ 60Hz
Power consumption	12W
Other features	Supports chromaticity, brightness, contrast, color temperature and sharpness value settings; character overlay function; hot plug; VGA signal input automatic correction; single port restore to factory settings

Input Signal Card-VMC-4I-AV

Input signal		4-channel CVBS signal, 4-channel analog audio signal		Supported audio formats		stereo
Input Connectors		BNC connector, 3-pin pluggable terminal block		Standard		Support PAL and NTSC formats
Power consumption		11W		Resolution		7 adjustable levels, up to 1920×1080@60Hz
conventional
Audio Noise Floor		-80dB		Maximum audio distortion		2.0V
Operating temperature		0℃～ +50℃		Relative humidity		10% ～ 90%
bandwidth		6.75Gbps		Automatic line scaling function		support
Other features		Supports chroma, brightness, contrast, color temperature and sharpness value settings; character overlay function; hot plug
	Input Signal Card-VMC-4I-SD

	Input signal		4-channel SDI signal (each with one SDI loop output)		Input Level		TMDS 2.9V～3.3V
	Input Connectors		BNC Connectors		Input Impedance		75Ω
	Video signal		SDI, HD-SDI, 3G-SDI, automatic identification of input signals		Power consumption		14W
	conventional
	Color Depth		8&10&12bit		Working distance		1080p≤100m (please use high-quality wire)
	bandwidth		6.75Gbps		Maximum resolution		1080p@60Hz
	Operating temperature		0℃～ +50℃		Relative humidity		10% ～ 90%
	Line doubling function		support		Resolution		Supports up to 1920×1080@60Hz ;
	Other features		Supports chroma, brightness, contrast, color temperature and sharpness value settings; character overlay function; hot plug

Input Signal Card-VMC-4I-HV

Input signal	2-way HDMI signal (compatible with DVI); 2-way VGA signal; 4-channel stereo audio signal		Power consumption	12W
Input Connectors	Type A 19-pin female connector; 15-pin D-type female connector; 3-pin pluggable terminal block
Resolution	Supports up to 1920×1080@60Hz
conventional
HDMI Port:
Color Depth	8 & 10 & 12 bit		Signal Type	HDMI, DVI-D, automatic identification of input signals
bandwidth	6.75Gpbs		temperature	0℃～ +50℃
humidity	10% ～ 90%
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
standard	Support HDMI1.3, compatible with HDCP standard
EDID and DDC Management	Supports Extended Display Identification (EDID) and Display Data Channel (DDC)
VGA Port:
Coupling input	AC coupling only	Input Level			0.5～2.0Vp-p
Input Impedance	75Ω	Frequency Response			20Hz～20K Hz
Gain	0 dB	Crosstalk			<-50dB@5MHz
Switching rate	200ns(max)	Chroma Space			Support adjustment of YCBCR\RGB
Video signal	VGA (RGBHV), YPbPr, C-VIDEO, automatic identification of input signals
Other Features	Supports automatic correction of VGA signal input and single-port factory reset
Function	Support hot plug and unplug, support chroma, brightness, contrast, color temperature and sharpness value settings, support character overlay function

Output Signal Card-VMC-4O-HD-4K

Output signal	4-channel HDMI signal, 4-channel analog audio signal	Power consumption	12.5 W
Output Connectors	Type A 19-pin female, 3-pin pluggable terminal block	Color Depth	8bit
conventional
Signal Type	HDMI, DVI-D	bandwidth	10.2Gpbs
temperature	0℃～ +50℃	humidity	10% ～ 90%
Resolution	8 adjustable levels, up to 4096 x 2160@60Hz
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
standard	Support HDMI1.4, HDCP2.2
EDID and DDC Management	Support EDID learning function and DDC communication
Other Features	Supports setting output format, independent audio signal transmission, and hot plugging through commands

Output signal card-VMC-4O-OF

Output signal	4-way optical fiber signal	Power consumption	32W
Output Connectors	Fiber Optic Module	Maximum rate	10.2Gbps
Data Types	DVI/HDMI	temperature	0℃～+50℃
Relative humidity	10%～90%	Color Depth	8bit, 10bit, 12bit, 16bit
Resolution	Supports 36 adjustable resolutions, with the highest output resolution of 4K @ 30Hz
Fiber Optic Module
Interface Specifications	LC interface
Fiber Optic Signal	The maximum transmission distance of single-mode optical fiber is 2KM, and that of multi-mode is 300M
Transmission distance	4K30 transmission distance: single-mode optical fiber has a maximum transmission distance of 2KM, and multi-mode is 300M
Other Features
Support setting output format through instructions, support hot plug and unplug

Output signal card-VMC-4O-HBT

Video Output
Output signal	4-channel HDBT signal	Output Level	TMDS 2.9V～3.3V
Output Connectors	RJ45, with yellow-green dual-color indicator light	Output Impedance	Differential line 100Ω
Power consumption	21W
Audio Output
Output signal	4-channel stereo signal	Output Connectors	3.5mm audio jack
Output Impedance	75Ω	Frequency Response	20Hz～20K Hz
control
Control Signal	4-way RS232 control signal	Control Port	3-pin pluggable terminal block
protocol	Support RS232 protocol
conventional
Gain	0 dB	bandwidth	10.2Gbps
Resolution	Support up to 1080p seamless	Crosstalk	<-50dB@5MHz
Transmission distance	1080p≤70m	Switching rate	200ns (max)
Operating temperature	-10℃～+40℃	Relative humidity	10%～90%
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
HDMI Standard	Support HDMI1.4, compatible with HDCP 2.2
EDID and DDC Management	Support EDID manual management and DDC communication function
Resolution	Supports 36 adjustable resolutions, with the highest output resolution of 1920×1080@60Hz
Transmission distance	1920×1080P60Hz transmission distance up to 70 meters
Other Features	Supports setting output format, hot plug and PoH external power supply functions through commands

Output signal card-VMC-2O-HBT-4K

Video Output
Output signal	2- way HDBT signal	Output Level	TMDS 2.9V～3.3V
Output Connectors	RJ45, with yellow-green dual-color indicator light	Output Impedance	Differential line 100Ω
Power consumption	21W
Audio Output
Output signal	2- way stereo signal	Output Connectors	3.5mm audio jack
Output Impedance	75Ω	Frequency Response	20Hz～20K Hz
control
Control Signal	4-way RS232 control signal	Control Port	3-pin pluggable terminal block
protocol	Support RS232 protocol
conventional
Gain	0 dB	bandwidth	10.2Gbps
Resolution	Supports up to 4096 x 2 160@ 30Hz	Crosstalk	<-50dB@5MHz
Transmission distance	1080p≤70m , 4K≤40M	Switching rate	200ns (max)
Operating temperature	-10℃～+40℃	Relative humidity	10%～90%
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
HDMI Standard	Support HDMI1.4, compatible with HDCP 2.2
EDID and DDC Management	Support EDID manual management and DDC communication function
Resolution	Supports 36 adjustable resolutions, with the highest output resolution of 4096 x 2 160@ 30Hz
Transmission distance	Support 4K up to 40M distance, 1080P up to 70M
Other Features	Supports setting output format, hot plug and PoH external power supply functions through commands

Output signal card-VMC-4O-DV

Output signal	4-way DVI signal	Output Level	TMDS 2.9V～3.3V
Output Connectors	Female port DB24+5	Output Impedance	75Ω
Power consumption	6W

conventional
Gain	0 dB	bandwidth	4.95Gbit/s
Video signal	DVI, HDMI, VGA, C-VIDEO, YPbPr	Maximum time delay	5nS(±1nS)
Data Types	8bit	Crosstalk	<-50dB@5MHz
Resolution	36 adjustable levels, up to 1920×1200@60Hz	Switching rate	200ns (max) crosstalk
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
Audio sampling rate	32K, 44.1K, 48K, 88.2K, 96K, 176.4K , 192K
EDID and DDC Management	Supports Extended Display Identification (EDID) and Display Data Channel (DDC), using DVI and HDMI standards
HDCP Management	Supports High-bandwidth Digital Content Protection (HDCP) and uses DVI and HDMI1.3 standards
Other Features	Supports setting output format and hot plugging through commands

Output Signal Card-VMC-4O-HD

Output signal	4-channel HDMI signal (compatible with DVI), 4-channel analog audio signal	Power consumption	8W
Output Connectors	Type A 19-pin female, 3-pin pluggable terminal block	Color Depth	8bit
Signal Type	HDMI, DVI-D	bandwidth	6.75Gpbs
temperature	0℃～ +50℃	humidity	10% ～ 90%
Resolution	36 adjustable resolutions, up to 1920×1200@60Hz
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
standard	Support HDMI1.3, compatible with HDCP
EDID and DDC Management	Support EDID learning function and display data channel (DDC)
Other Features	Support setting output format through instructions, support hot plug

Output signal card-VMC-4O-VG

Video Output
Output signal	4-way VGA signal	Switch Type	Vertical Spacing
Output Connectors	15-pin D-type female port	Output Level	0.5～2.0Vp-p
Output Impedance	75Ω	Resolution	36 adjustable resolutions, up to 1920×1200@60Hz
Signal Type	Support VGA, YPBPR, C-VIDEO signal formats
Audio Output
Output signal	4 channels of analog audio signals	Output Impedance	75Ω
Output Connectors	3-pin pluggable terminal block	Frequency Response	20Hz～20K Hz
conventional
Gain	0 dB	Switching rate	200ns(max)
Crosstalk	<-50dB@5MHz	Power consumption	6W
Other Features	Supports setting output format and hot plugging through commands

Output signal card-VMC-4O-AV

Output signal	4-channel CVBS signal, 4-channel analog audio signal	Resolution	480I and 576I two resolutions are adjustable
Output Connectors	BNC connector, 3-pin pluggable terminal block	Output Audio Format	stereo
Power consumption	9W	Transmission distance	≤100m (please use high-quality wire)
conventional
Audio Noise Floor	-80dB	Maximum audio distortion	2.0V
Operating temperature	0℃～ +50℃	Relative humidity	10% ～ 90%
bandwidth	6.75Gbps	Standard	Support PAL and NTSC formats
Other Features	Supports setting output format and hot plugging through commands

Output signal card-VMC-4O-SD

Output signal	4-channel SDI signal (each with one SDI loop output)	Output Level	TMDS 2.9V～3.3V
Output Connectors	BNC Connectors	Output Impedance	75Ω
Video signal	SDI, HD-SDI, 3G-SDI	Power consumption	15W
Resolution	7 adjustable resolutions, up to 1920×1200@60Hz
conventional
Color Depth	8&10&12bit	Working distance	1080p≤100m (please use high-quality wire)
bandwidth	6.75Gbps	Maximum resolution	1080p@60Hz
Operating temperature	0℃～ +50℃	Relative humidity	10% ～ 90%
Other Features	Supports setting output format and hot plugging through commands

Output signal card-VMC-4O-HV

Output signal	2-way HDMI signal (compatible with DVI); 2-way VGA signal; 4-channel stereo audio signal	Power consumption	8W
Output Connectors	Type A 19-pin female connector; 15-pin D-type female connector; 3-pin pluggable terminal block
Resolution	36 adjustable resolutions, up to 1920×1200@60Hz
conventional
HDMI Port:
Color Depth	8 bits	Signal Type	HDMI, DVI-D
bandwidth	6.75Gpbs	temperature	0℃～ +50℃

humidity	10% ～ 90%
Audio Format	Embedded audio supports PCM, Dobly Digital, DTS, DTS-HD formats, external audio supports PCM format
standard	Support HDMI1.3, compatible with HDCP
EDID and DDC Management	Support EDID learning function and DDC communication function
VGA Port:
Output Level	0.5～2.0Vp-p	Output Impedance	75Ω
Signal Type	VGA , YPBPR , C-VIDEO
Switch Type	Vertical Spacing	Frequency Response	20Hz～20K Hz
Gain	0 dB	Crosstalk	<-50dB@5MHz
Switching rate	200ns(max)
Bandwidth	YPbPr : 170MHz; C-VIDEO : 150MHz; VGA : 170MHz
Video signal	VGA (RGBHV), YPbPr, S-VIDEO, C-VIDEO
other
Supports setting output format and hot plugging through commands

Signal Preview Card-VMC-4P-OB

interface	2 RJ45 ports	Preview capability	Can preview 4 video sources simultaneously
Protocols and Standards	H.264 encoding technology, standard RTSP protocol	Power consumption	15W
Resolution	The resolution of each channel of video playback can reach 720p, and the preview resolution can be changed through commands
control	Support matrix control , support power-off memory function

IP Decoder Card-VMC-4I-IP

interface	2 RJ45 ports	Decoding capability	Support 41080P@60Hz, 81080P@30Hz, 16*720P@30Hz decoding
Audio Interface	Audio input 1/2/3/4: reserved external audio interface	Power consumption	1 3 W
Resolution	Support rtsp/rtp/rtpo TCP access	other	With power off memory
control	Support onvif2.6 protocol, support onvif device identification, support onvif protocol stream access, support onvif PTZ control

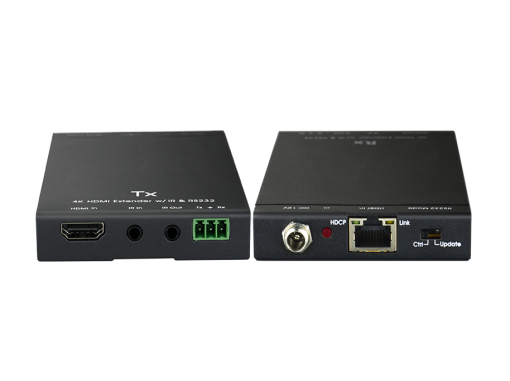

HDMI Signal 70m HDBaseT Transmitter-VHBT-HD-70T

For use with HDBaseT input card and 4K HDBaseT input card
enter	1-way HDMI	Input Connectors	Type A 19-pin female connector
Output	1 -way HDBaset	Output Connectors	RJ-45 Terminals
Control interface	1 channel IR IN, 1 channel IR OUT, 1 bidirectional RS232	Control functions	Support CEC, IR, RS232 two-way transparent transmission
standard	Compliant with HDCP2.2 and HDMI1.4 standards	Resolution	Supports up to 3840×2160@30Hz
Operating temperature	0~50℃	humidity	10% ~ 90%
Maximum power consumption	14W	Dimensions (mm)	115L x 109W x 16.2H
Transmission distance	1920×1080P60Hz transmission distance up to 70 meters, 3840×2160@30Hz transmission distance up to 40 meters
other	Support bidirectional PoC function and RS232 firmware upgrade

HDMI Signal 70m HDBaseT Receiver-VHBT-HD-70R

Use with HDBaseT output card, 4K HDBaseT output card
enter	1 -way HDBaset	Input Connectors	Type A 19-pin female connector
Output	1-way HDMI	Output Connectors	RJ-45 Terminals
Control interface	1 channel IR IN, 1 channel IR OUT, 1 bidirectional RS232	Control functions	Support CEC, IR, RS232 two-way transparent transmission
standard	Compliant with HDCP2.2 and HDMI1.4 standards	Resolution	Supports up to 3840×2160@30Hz
Operating temperature	0~50℃	humidity	10% ~ 90%
Maximum power consumption	14W	Dimensions (mm)	115L x 109W x 16.2H
Transmission distance	1920×1080P60Hz transmission distance up to 70 meters, 3840×2160@30Hz transmission distance up to 40 meters
other	Support bidirectional PoC function and RS232 firmware upgrade

32x32 Hybrid Modular Video Matrix

Product Overview

Features

You Might Also Like

Send Inquiry
