Overview

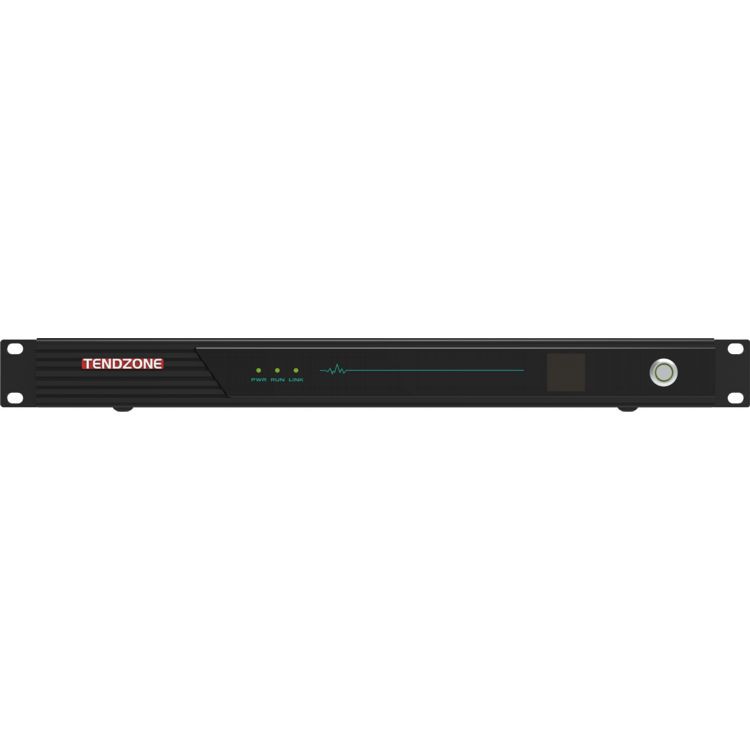

The CLIMBER-1005 product integrates centralized unified control, 4K60 video switching matrix, digital audio processor, digital amplifier, POE Gigabit switch and other functions in one, which can meet the multimedia conference room, intelligent classroom and other scenes. It can be independently networked, intelligent access to various types of audio and video multimedia peripherals, environmental peripherals, etc. The product can be widely used in government/enterprise institutions, public prosecution, finance, transportation, armed police, education, medical and other industries.
The CLIMBER-1005 product adopts a new generation of media processing chip with superior capacity, and it supports 4K@60 video input and output.
Features
Smart Control
- With common central control interfaces such as RS232/485/IR/IO/RELAY.
- Supports network control via TCP and UDP protocols.
- Supports Zigbee IoT protocol control.
- Supports bi-directional control through a single serial link.
- Combines wired control with wireless IoT control to prevent interference and disconnection from the shield.
High Definition 4K Video Matrix
- 3 in 3 out 4K60 HD seamless switching video matrix
- Support a variety of scene applications, such as: multimedia conference room, multimedia classroom and other scenes,
- support local centralized control, display, sound reinforcement and other needs
- Supports the codec technology of the Multimedia Information Distributed Interactive System platform (MIDIS) and is used as a distributed single input/output interface machine;
Digital Audio Processor
- 6-in-4-out full-featured audio interface, built-in network audio and HDMI audio,
- Build in 5A audio algorithm that effectively eliminates reverberation and noise in classroom environments.
- Built-in digital amplifier with a rated power of 2*100W.
Smart Centralized Control
- Remote batch device management allows for one-click ON/OFF system
- Integration with the teaching schedule for easy class start and end management.
- Intelligent remote centralized control,
- IoT automation, and broadcasting strategies.
- This system includes visual online class monitoring, intercom calling, and a mini-program for remote control .
- Data dashboards.automatically counts device online status and IoT data statistics.
IP broadcast
- Exam audio broadcasting
- Live video broadcasting
- Exam guidelines image broadcasting
- Text-to-speech broadcasting
Rear Panel
Hot Tags: all-in-one integrated processor, China all-in-one integrated processor manufacturers, suppliers, factory, Vailink 2CH Analog Input Adapter, 8x8 Web Based Dante Audio Processor, DANTE DSP, DSP for Audio Applications, network speaker, network audio distribution
SPECIFICATIONS
|
Main Functions |
|
|
Architecture |
Industrial-grade system architecture, LINUX system |
|
Video Codec |
One channel video encoding (including the main stream 1080P@60 and preview stream CIF), support to select one of three local HDMI inputs encoding to the distributed platform; support one channel HDMI decoding output, the encoding and decoding stream bandwidth is 512Kbps~16Mbps |
|
Audio Processing |
Supports automatic echo cancellation (AEC), automatic gain control (AGC), automatic noise cancellation/suppression (ANC/ANS), automatic feedback cancellation (AFC), mix matrix (AM), and dodger ducker |
|
Image Processing |
Supports 2 channels network stream, 1 channel local HDMI input for image synthesis output, and supports multi-screen synthesis encoding; supports subtitle overlay; supports multi-screen automatic switching |
|
Audio and Video Protocol |
Audio supports G.711, G711A, G711U, G.722, AAC, supports decoding audio streams, video supports H.264/H.265 encoding formats, image quality supports HP, MP, BP |
|
IPC Camera Access |
Supports RTSP video stream access from 2 IPC cameras |
|
Interfacing with Third-party Platform |
Supports third-party platform RTMP push stream to local playing; supports third-party platform RTSP pull stream |
|
Maintenance Function |
Supports Web interface management, providing fast configuration of device ports, user management, IP address modify, restore factory setting, software upgrade, indicator setting, infrared learning, log management, serial debugging, telnet remote debugging, remote operation and maintenance management; supports to control audio channel volume via MIDIS system |
|
Hardware and Interface |
|
|
Audio Input |
6 channel phoenix terminal inputs, supports MIC input or line input, supports 48V phantom power |
|
Audio Output |
2 pair of L/R phoenix terminal stereo outputs |
|
Video Input |
3 HDMI input ports, resolution up to 4K60 |
|
Video Output |
3 HDMI output ports, resolution up to 4K60 |
|
Control Interface |
2 channels of RS-232, 2 channels of RS-485 interfaces, 2 channels of RELAY, 2 channels of I/O, 2 channels of IR |
|
Power Amplifier |
2x100W@8 Ohm digital amplifier outputs, or 2x150W@4 Ohm digital amplifier outputs |
|
USB port |
1 channel USB Type-A, 1 channel USB Type-C |
|
Network Interface |
4 PoE LAN ports, 1 WAN port, 1 SFP fiber port, 2 x WiFi antennas |
|
Power Switch |
Supports network sleep and wake-up, one-touch switching system |
|
Accessories |
|
|
Control Panel |
Only supports matching TENDZONE control panels, optional 10.1 inch network PoE desktop touch screen and 10.1 inch network PoE wall embedded touch screen |
|
Electrical and Physical Parameter |
|
|
Power Supply |
AC100~220V/50~60Hz |
|
Power Consumption |
|
|
Operating Temperature |
0℃-45℃ |
|
Relative Humidity |
10%～90％ when Altitude < 5000m |
|
Dimensions |
436.8mm45mm*318mm(W*H*D) |
|
Package size |
560mm*135mm*408mm(W*H*D) |
|
Net Weight |
5Kg |
|
Shipping Weight |
6.3Kg |
40W (without PoE devices connection)
340W (with PoE devices connection)
Application
Meeting Rooms
Conference Center
House of Worship
Courtrooms
Classrooms
Training Rooms
Hotels
Lecture Halls
All Hand Space
