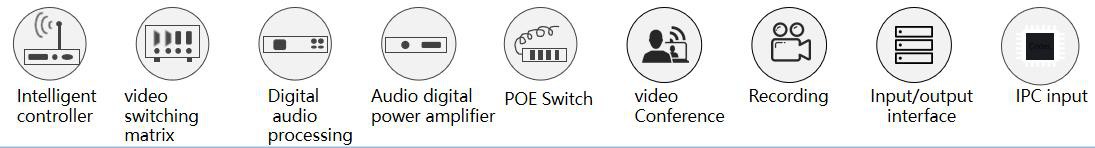

Nine-in-one Integrated Processor

project

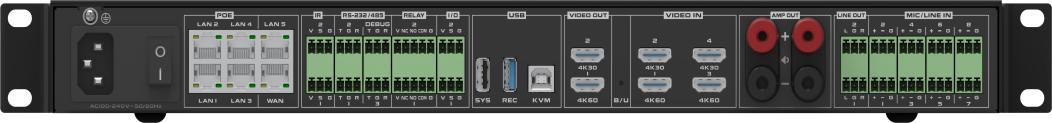

CLIMBER-1008

Safe and stable

Adopting industrial-grade system architecture, developed based on LINUX system, virus-free

Data Interface

2 USB Type-A, 1 USB Type-B

Network Camera

12 local network cameras, 4 network forwarding

Video Codec

Supports up to 4K60 video encoding and decoding; supports up to 4 channels of 1080P60 encoding and up to 4 channels of 1080P@60 decoding; or 8 channels of 1080P@30 encoding and 8 channels of 1080P@30 decoding;

Audio and video protocol

Audio supports G.711, G.722, G722.1, G722.1C, AAC, and supports decoding audio code streams

Video supports H.264HP , MP, BP, H265MP

Display terminal

Built-in video splitting function, which can realize single screen/picture-in-picture/picture-out- picture synthesis , subtitle overlay , terminal name overlay, and station logo display in single, double , three, four, five , six , seven, eight, nine, ten , thirteen, and sixteen split screens

control Panel

Supports a variety of control panels, optional 10.1-inch wired Android touch screen ( standard without wall mount, no POE support ) , 10.1-inch network PoE desktop touch screen, 10.1-inch network PoE wall-mounted touch screen (standard with wall-mounted bottom box)

Codec rate

Maximum 16 channels of 1080P codec , 512Kbps~16Mbps per channel

Audio Input

8-way Phoenix terminal input (supports 48V phantom power MIC input or line in linear input) , 4- way HDMI embedded audio input

Audio Output

4-way line out audio output (or 2 pairs of L/R Phoenix terminal stereo output), 2-way 100W@8 ohm digital amplifier output (or 2-way 150W@4 ohm digital amplifier output) , 2-way HDMI embedded audio output ; support volume adjustment, audio supports synchronization and mixing

Video Input

4 HDMI input interfaces , 16 IP network camera inputs ; HDMI IN1 and HDMI IN3 support input with a maximum resolution of 4K30, and HDMI IN2 and HDMI IN4 support input with a maximum resolution of 1920*1080@60;

Video Output

2 HDMI output interfaces , HDMI OUT1 and HDMI OUT2 support maximum resolution 4K30 output;

Audio Processing

Supports automatic echo cancellation (AEC), automatic gain control (AGC), automatic noise cancellation/suppression (ANC /ANS ), automatic feedback cancellation (AFC), mixing matrix (AM), packet loss compensation (PLC)

Video Processing

Supports video resolution adaptation, switching, allocation, screen splitting, scrolling subtitle overlay display , terminal name overlay, station logo display , and image parameter adjustment ; subtitle and terminal name overlay support arbitrary position adjustment; station logo supports upper left, upper right, lower left, and lower right position adjustment, and supports transparency display adjustment;

Communication Protocol

SIP, BFCP dual stream , H.323, H.239 , E.164, H.245, NAT, H.225, Q.931 , RTSP, RTMP, TCP/IP, HTTP, FTP, TCP, UDP, NTP, RTP, RTCP, Telnet, TLS;

Network Interface

1 WAN port, 5 LAN ports; or set 6 network ports to be fully connected; 4 of the network ports support PoE power supply;

Note: If you need to connect to a third-party PoE switch, we recommend that you use a network port that does not support PoE to connect to the other party's PoE switch to ensure that one of the network ports does not provide external PoE power. Try not to connect directly to each other using PoE interfaces.

Mixing function

Supports local audio, HDMI embedded audio, and remote audio RTSP network access streams entering the mixer, and can dynamically select mixing

Central Control

One-touch central control: switch system, adjust output volume, switch signal source , camera control , recording and broadcasting control , remote call, environment control, etc.

Environmental control interface

3-way RS-232/485 interface, 1*RS232/RS485 DEBUG , 2-way RELAY, 2-way I/O, 2-way infrared IR

Video conference​

Support H.323 point-to-point video conference calls and auxiliary stream sending;

Support SIP point-to-point video conference calls and auxiliary stream sending ;

A single machine supports a maximum of 6-party conferences (via SIP/H.323 protocol) , supports the creation of multiple conference templates, supports scheduled conferences, and automatically convenes conferences according to the scheduled time; you can invite new terminals to join the conference during the conference, or kick a terminal out of the conference; you can mute / unmute any venue, or mute/unmute all venues with one click;

When using the H.323 protocol, GK registration is supported and calls can be made via short numbers;

When using the SIP protocol, SIP registration is supported and calls can be made via short numbers;

During the video conference, it supports encrypted transmission of audio and video, point-to-point call encryption, and multi-party video conference call encryption to prevent the audio and video from being eavesdropped during the entire conference;

Push stream

Support streaming to no less than 8 different live streaming platforms at the same time

Live streaming

Supports up to 10-channel multicast , live broadcast and on-demand

Recording function

Supports being used as a recording and broadcasting distribution terminal and client, with a maximum of 4 local recording streams ( or recording 1 4K picture ), the recording and broadcasting file format is MP4 , supports automatic copying of USB flash drives, forced upgrade of USB flash drive system and restoration of initial configuration, supports recording file content management (download/export/edit/delete)

Distributed Systems

It can be used as an input and output interface machine of a distributed system, and supports access to a distributed system to meet the needs of various clients (such as Android client, IOS client, Hongmeng client, WINDOWS client, Kylin client, etc.) for visual control and distributed on-screen display; it supports matching with multimedia distributed control systems, supports device control through visual image preview, supports being used as a distributed node terminal, and realizes interconnection between devices

Distributed system support

When used with a distributed system, the hyper-converged cloud node supports the expansion of audio, video, and control input and output channels in conjunction with the input interface machine and the output interface machine. The HDMI interface input image of the hyper-converged cloud node can be directly output to the output interface machine through the network for large-screen splicing output. The input interface machine image can also be directly output to the HDMI interface of the hyper-converged cloud node through network transmission. Each HDMI output interface supports multiple screen combinations (i.e., screen splitting function).

Internal hard disk

Standard 2TB 3.5-inch surveillance-grade hard disk, can be expanded to a 12TB mobile hard disk via USB

Network Communication

Support 4 -channel audio mixing and playback, support network sleep and wake-up, one-touch system switch

Maintenance function

Supports Web interface management, provides quick configuration of device ports, supports Web port password modification, IP address modification, factory reset, software upgrade, indicator light, infrared learning, log management, serial port debugging, Telnet remote debugging , remote operation and maintenance management

Installation

1 U telecommunications standard cabinet installation , it is recommended to install it close to peripheral equipment to reduce wiring workload

Device size

Product size: width*height*depth4 36.8 mm* 45 mm* 318 mm

Packing size: width*height*depth 560 mm *135 mm *408 mm

Equipment weight

Gross weight 7.2KG (including packaging materials)

Input voltage and current

AC100~240V/50~60Hz

Device power consumption

Without external speaker output and POE powered device : Typical power consumption 40W

When two external speakers and an external POE powered device are connected : Full load power consumption 340 W

Operating temperature

0~45℃ Working

Humidity Altitude

10% to 90%, altitude less than or equal to 5000 meters
