Overview

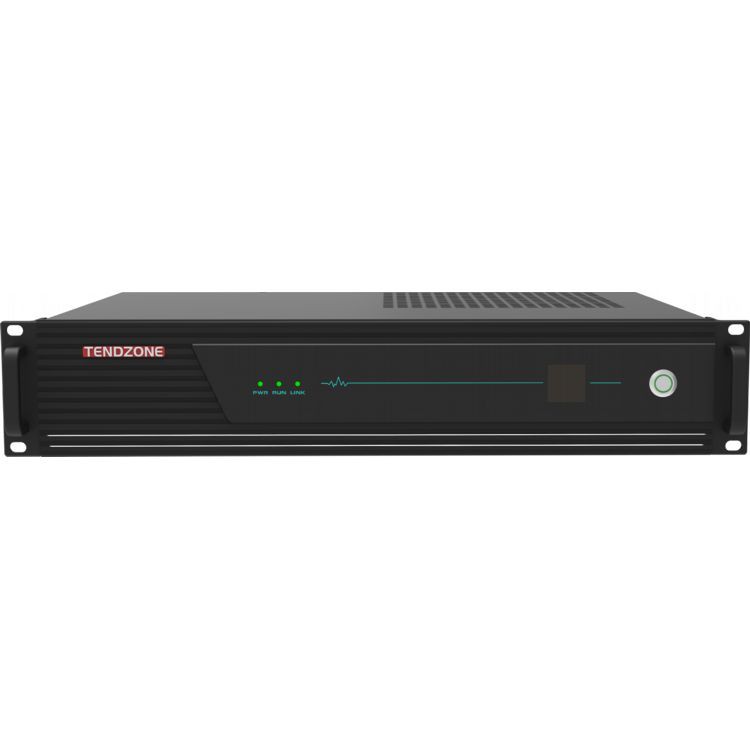

The CLIMBER-1009 series is the latest 12-in-1 multifunctional terminal host from TENDZONE, built on years of integrated product development experience. This advanced solution combines TENDZONE's latest audio algorithms, video codecs, centralized control, media processing, remote communication, and other technologies. Powered by domestic core processors, the CLIMBER-1009 is a next-generation multifunctional integrated device optimized for embedded systems.
Designed with flexibility in mind, this product features a plug-in card design to accommodate various scenario-specific needs. It integrates a range of functions including remote video conferencing, local recording and broadcasting, audio amplification, video matrix switching, peripheral environmental control, centralized unified touch, distributed input and output codecs, IPC access, POE gigabit switch, and more. The CLIMBER-1009 is ideal for applications in multimedia conference rooms, smart classrooms, lecture halls, multifunctional halls, mobile command and dispatch centers, and other environments.
This 12-in-1 multifunctional terminal host supports a variety of operations such as local and remote meetings, remote live streaming, training, supervision, teaching, and mobile command. It offers seamless integration with various audio-visual and environmental peripherals, enabling intelligent and efficient operation. It can be configured as a hyper-converged all-in-one device with a built-in OPS computer, wireless screen projection, and wireless microphone modules, offering an all-encompassing solution that saves space and simplifies user interaction.
With a new generation of media processing chips, the CLIMBER-1009 delivers powerful performance and supports H.265 4K@60fps video codec, enhancing both image and sound quality for a superior HD experience. Additionally, it features significant improvements in compatibility, network adaptability, delay management, anti-packet loss, multi-screen handling, and concurrent multi-function processing, making it an optimal solution for government, enterprise, public safety, education, medical, and other sectors.
Features
OPS Computer:
- Build in OPS Computer ,Meets office requirements and can install office software, such as Tencent Meeting, for software-based video conferencing. (Customizable with domestic OPS according to specific needs).
Smart Centralized Control:
- Integrated control of multimedia equipment via the conference tablet, enabling unified management of audio and video, video conferencing, recording, broadcasting, and third-party peripherals.
- Supports common central control interfaces such as RS232/485/IR/IO/RELAY for easy integration with other devices.
- Supports Zigbee IoT protocol for additional control options.
- Bi-directional control over a single serial link for simplified system management.
- Combines wired control with wireless IoT control to ensure stable operation and prevent interference.
High Definition 4K Video Matrix:
- 4-in-6-out 4K60 HD seamless video matrix with full flexibility for multiple screen configurations.
- Supports diverse scenarios such as multimedia conference rooms, multimedia classrooms, and command centers.
- Facilitates local centralized control, display, sound reinforcement, and other requirements.
- Supports the Multimedia Information Distributed Interactive System (MIDIS) codec technology, functioning as a distributed input/output interface.
Digital Audio Processor:
- 8-in-4-out full-featured audio interface, including built-in network audio and HDMI audio support.
- Integrated 5A audio algorithm that reduces reverberation and noise, ideal for classroom and conference room environments.
- Built-in digital amplifier with 2×100W rated power for clear, powerful audio performance.
Video Conferencing:
- Local recording and playback functionality for video conferencing.
- Supports remote interactive SIP calls, enabling bidirectional audio and video communication for remote collaboration.
- Optional multi-party interactive authorization for seamless integration with third-party video conferencing platforms, supporting standard protocols.
Wireless microphone:
- UHF receiver host, support wireless handheld microphone access, for local sound reinforcement, conference recording, video conference speech reinforcement;
Wireless Screen Projection:
- Support wirelessly display the desktop image of a portable device, smartphone, or tablet onto a screen using a small dongle or screen projection client.
POE Network Switch:
- Supports IPC power supply, image, and control over a single cable, simplifying wiring and installation.
- TCP/UDP network control for third-party devices, enhancing system integration.
- Provides API interface documentation for custom integrations.
Local Recording and Playback:
- Supports local recording of 4 to 6 video streams, enabling easy video storage and access.
- Ideal for meeting recording, live event broadcasting, and training sessions.
Input/Output Interface:
- Supports integration with multimedia distributed interactive systems for distributed scheduling and command.
- Provides multiple I/O options for flexible system connectivity and management.
IPC Access:
- Supports up to 16 IPC video inputs, with the ability to handle local output and recording.
- Ideal for environments requiring video surveillance and monitoring integration.
Stable and Reliable:
- Built on an embedded Linux system, ensuring immunity to viruses and providing a secure operating environment.
- Carrier-grade structure design for 24/7 continuous operation, making the system highly reliable and suitable for mission-critical applications.
- The device can be installed in standard cabinet or used independently, offering flexible installation options.
- Front panel LCD for easy monitoring and status updates.
- Dual power switches (hard power and soft power) for seamless operation and system standby/wake-up functionality.
Rear panel image:
(1) OPS computer ( 2 ) Host power switch (3) Host power ( 4 ) Gigabit Ethernet ports * 6 (4 of which are POE) ( 5 ) IR infrared interface * 2 ( 6 ) RS-232/485 interface * 3 + RS-232/485 debug port * 1 ( 7 ) ELAY control port * 2 ( voltage and current: 12V/not more than 1A ) ( 8 ) I/O interface*2 ( voltage and current: 12V/not more than 1A ) ( 9 ) USB Type-A *2, USB Type-B*1 (10) HDMI output port* 6 ( 1 1 ) HDMI input port *4 ( 1 2 ) Amplifier terminal 100W@8 ohm * 2 pairs ( 13 ) L/R Phoenix terminal stereo output * 2 ( 4 independent audio outputs in total ) (14) MIC/LINE input port * 8 (15) CAST wireless projection (16) UHF wireless speaking module
Hot Tags: twelve-in-one integrated processor, China twelve-in-one integrated processor manufacturers, suppliers, factory, Audio interface, audio processor, 4K60 4 4 4 Network AV Encoder Decoder, fixed audio processors, DSP audio processor, DANTE Microphone
SPECIFICATIONS
|
project |
Specifications |
|
Safe and stable |
Adopting industrial-grade system architecture, developed based on LINUX system, virus- free |
|
Data Interface |
2 USB Type-A, 1 USB Type-B |
|
Network Camera |
12 local network cameras, 4 network forwarding |
|
Video Codec |
Up to 4 channels of 1080P60 encoding, up to 4 channels of 1080P@60 decoding, or 8 channels of 1080P@30 encoding and 8 channels of 1080P@30 decoding; |
|
Audio and video protocol |
Audio supports G.711, G.722, G722.1, G722.1C, AAC, and supports decoding audio code streams Video supports H.264HP , MP, BP, H265MP |
|
Display terminal |
Built-in video splitting function, which can realize single screen/picture-in-picture/picture-out- picture synthesis , subtitle overlay , terminal name overlay, and station logo display in single, double , three, four, five , six , seven, eight, nine, ten , thirteen, and sixteen split screens |
|
control Panel |
Supports a variety of control panels, optional 10.1-inch wired Android touch screen ( standard without wall mount, no POE support ) , 10.1-inch network PoE desktop touch screen, 10.1-inch network PoE wall-mounted touch screen (standard with wall-mounted bottom box) |
|
Codec rate |
Maximum 16 channels of 1080P codec , 512Kbps~16Mbps per channel |
|
Audio Input |
8-way Phoenix terminal input (supports 48V phantom power MIC input or line in linear input) , 4 -way HDMI embedded audio input, 1-way OPS audio input, 1-way wireless projection audio input (optional), 1-way wireless speech module audio input (optional) |
|
Audio Output |
4-way line out audio output (or 2 pairs of L/R Phoenix terminal stereo output), 2-way 100W@8 ohm digital amplifier output (or 2-way 150W@4 ohm digital amplifier output) , 2 -way HDMI embedded audio output ; support volume adjustment, audio supports synchronization and mixing . HDMI OUT1 supports amplification of all audio inputs, HDMI OUT2~HDMI OUT6 only support network RSTP stream audio amplification. |
|
Video Input |
4 HDMI input interfaces , 16 IP network camera inputs ; HDMI IN1 and HDMI IN3 support input with a maximum resolution of 4K30, and HDMI IN2 and HDMI IN4 support input with a maximum resolution of 1920*1080@60; |
|
Video Output |
1) 6- channel HDMI output interface , of which HDMI OUT2~HDMI OUT6 are homologous signal outputs; HDMI OUT1 supports a maximum resolution of 4K30 output, and HDMI OUT2~HDMI OUT6 support a maximum resolution of 1920*1080@60 output; 2) When the built-in OPS computer opens a Tencent meeting (if the camera is connected to HDMI IN), the built-in OPS computer screen can only be output from HDMI OUT1, and HDMI OUT2~6 can only display the screen of the camera connected to HDMI IN; 3) When the built-in OPS opens a Tencent meeting (when only one USB camera is directly connected to the USB port of the OPS as the Tencent meeting camera collection), the built-in OPS computer screen can be output from HDMI OUT1~6; 4) When Tencent Meeting is not in progress, the output of HDMI OUT1 and HDMI OUT2~6 can be selected from wireless screen projection, built-in OPS computer, and HDMI IN1~4; |
|
Audio Processing |
Supports automatic echo cancellation (AEC), automatic gain control (AGC), automatic noise cancellation/suppression (ANC /ANS ), automatic feedback cancellation (AFC), mixing matrix (AM), packet loss compensation (PLC) |
|
Video Processing |
Supports video resolution adaptation, switching, allocation, screen splitting, scrolling subtitle overlay display , terminal name overlay, station logo display , and image parameter adjustment ; subtitle and terminal name overlay support arbitrary position adjustment; station logo supports upper left, upper right, lower left, and lower right position adjustment, and supports transparency display adjustment; |
|
Communication Protocol |
SIP, BFCP dual stream , H.323, H.239 , E.164, H.245, NAT, H.225, Q.931 , RTSP, RTMP, TCP/IP, HTTP, FTP, TCP, UDP, NTP, RTP , RTCP, Telnet, TLS; |
|
Network Interface |
1 WAN port, 5 LAN ports; or set 6 network ports to be fully connected; 4 of the network ports support PoE power supply; Note: If you need to connect to a third-party PoE switch, we recommend that you use a network port that does not support PoE to connect to the other party's PoE switch to ensure that one of the network ports does not provide external PoE power. Try not to connect directly to each other using PoE interfaces. |
|
Mixing function |
It also supports local audio, HDMI embedded audio, and remote audio RTSP network access streams entering the mixer, and can dynamically select mixing; it also supports built-in OPS audio input, built-in wireless screen projection audio input (optional), and built-in wireless speaking module audio input (optional) entering the mixer; |
|
Central Control |
One-touch central control: switch system, adjust output volume, switch signal source , camera control , recording and broadcasting control , remote call, environment control, etc. Supports providing 12V power to the control panel through the RELAY port; |
|
Environmental control interface |
3-way RS-232/485 interface, 1*RS232/RS485 DEBUG , 2-way RELAY, 2-way I/O, 2-way infrared IR |
|
videoconference |
Support H.323 point-to-point video conference calls and auxiliary stream sending; Support SIP point-to-point video conference calls and auxiliary stream sending ; A single machine supports a maximum of 6-party conferences (via SIP protocol) , supports the creation of multiple conference templates, supports scheduled conferences, and automatically convenes conferences according to the scheduled time; you can invite new terminals to join the conference during the conference, or kick a terminal out of the conference; you can mute / unmute any venue, or mute/unmute all venues with one click; When using the H.323 protocol, GK registration is supported and calls can be made via short numbers; When using the SIP protocol, SIP registration is supported and calls can be made via short numbers; |
|
Push stream |
Support streaming to no less than 8 different live streaming platforms at the same time |
|
Live streaming function |
Supports up to 10-channel multicast , live broadcast and on-demand |
|
Recording function |
Supports being used as a recording and broadcasting distribution terminal and client, with a maximum of 4 local recording streams ( or recording 1 4K picture ), the recording and broadcasting file format is MP4 , supports automatic copying of USB flash drives, forced upgrade of USB flash drive system and restoration of initial configuration, supports recording file content management (download/export/edit/delete) |
|
Internal hard disk |
Standard 2TB 3.5-inch surveillance-grade hard drive, can be expanded to a 12TB hard drive via USB |
|
Network Communication |
Support 4 -channel audio mixing and playback, support network sleep and wake-up, one-touch system switch |
|
Maintenance function |
Supports Web interface management, provides quick configuration of device ports, supports Web port password modification, IP address modification, factory reset, software upgrade, indicator light, infrared learning, log management, serial port debugging, Telnet remote debugging , remote operation and maintenance management |
|
Built-in OPS computer module |
1) OPS computer (Windows version) module, standard configuration integrated OPS 11th generation computer, 16G memory, 512G hard disk, installed with Windows 11 Professional operating system; 2) The Tencent Conference function can be installed, supporting the use of external video and audio signals as the camera and microphone of the Tencent Conference. At the same time, the Tencent Conference video interface can be output through the local HDMI OUT1 interface and amplified through the local audio interface; 3) HDMI OUT2 interface is used as the only acquisition source for Tencent Conference video input; |
|
Wireless screen projection function |
1) Optional wireless screen projection module supports wireless transmission of desktop images of portable terminal PC/mobile phone/PAD to hyper-converged cloud nodes through wireless screen projection transmitter or screen projection client, and output through the local HDMI OUT interface to realize wireless sharing functions such as picture sharing/presentation/video file/office collaboration; 2) USB1 is used for pairing with the wireless screen projection transmitter; USB2 is used for upgrading the software version of the wireless screen projection receiving module; 3) The antenna of the wireless receiver module can be extended to the ceiling of the conference room to enhance the reception signal of the wireless projection screen; |
|
Built-in wireless speaking module |
Optional wireless microphone/collar clip/headset module, which supports pairing with hyper-converged cloud nodes as the sound source for local sound reinforcement, local recording and broadcasting conference recording, and video conference speech reinforcement; UHF wireless speech receiving module, supports 2 microphones speaking at the same time; |
|
Installation |
2 U telecom standard cabinet installation , it is recommended to install it close to peripheral equipment to reduce wiring workload |
|
Device size |
Product size: width*height*depth 436.8mm*89mm*320mm |
|
Input voltage and current |
AC100~240V/50~60Hz |
|
Device power consumption |
Without external speaker output and POE powered device: Typical power consumption When two external speakers and an external POE powered device are connected : Full load power consumption |
|
Equipment weight |
The net weight of the whole machine is 9.3KG, and the total weight with packaging is 12KG |
|
Operating temperature |
0~45℃ Working |
|
Humidity Altitude |
10% to 90%, altitude less than or equal to 5000 meters |
80W
350 W
