Shenzhen Tendzone Intelligent Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 2.4g wireless conference host in China. Please feel free to wholesale high quality 2.4g wireless conference host made in China here from our factory. We also accept customized orders.
Overview

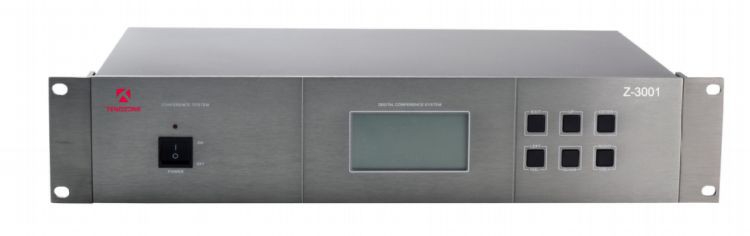

The Tendzone Z-3001 digital wireless conference system is a complete set of systems based on 2.4G standard, combining high-quality audio and video technology with powerful interactive wireless data transmission function. Based on core DSP audio technology and 2.4G wireless transmission technology, it creatively uses distributed multi-point intelligent transmission technology to solve the distribution control of control signals, greatly improves the reliability of control signal transmission , and provides a stable, reliable, economical, practical and powerful wireless conference system for various application environments.
Features
- The host supports connecting 128 microphones and can be expanded as needed;
- The system host supports 4 microphones working at the same time, and the number of microphones can be set;
- The transmission adopts pure digital 2.4G wireless transmission technology, which can support an effective range of 25 meters without obstruction;
- The device supports a three-input and one-output video matrix. It can directly connect 1-3 cameras to achieve automatic video tracking;
- The device's LCD display can display complete prompt texts, making the operation simple and clear;
- The host has a built-in DSP audio processing module, which can prevent howling to a limited extent;
- Unique system detection function, which can automatically detect the microphone unit code and automatically connect the frequency when the machine is turned on;
- 2.4G wireless high-frequency transmission connection mode, 32-bit address code frequency matching technology, strong anti-interference ability;
- Enhanced data confidentiality to prevent malicious radio interference and eavesdropping;
- The system microphone unit adopts wireless mode, which is easy to connect, simplifies the construction difficulty, reduces the project cost and has good maintainability;
- Easy to operate: one person, one machine, delegates can speak by simply pressing a button;
- Equipped with RS-232 serial port for connecting to the central control system to achieve centralized control;
- Stable and reliable chassis design: standard 2U host chassis , cold-rolled steel plate, spray-painted process, and the panel fully considers aesthetics;
- The interior of the case and the openings are well designed, and the machine has good heat dissipation
Rear Panel
Hot Tags: 2.4g wireless conference host, China 2.4g wireless conference host manufacturers, suppliers, factory, 4K Binocular Intelligent Teaching Teacher Camera, Vailink 2CH Analog Output Adapter, 16x16 Web Based Dante Audio Processor, IP ceiling speaker, Premium Recording and Broadcasting Classroom Terminal, 8 Vailink Network Coaxial Ceiling Speaker
SPECIFICATIONS
|
General Performance |
|
|
Frequency Response |
20-20kHz |
|
Signal-to-Noise Ratio |
>80 dB(A) |
|
Dynamic Range |
>90 dB |
|
Total Harmonic Distortion |
≤0.01% |
|
Use frequency band |
2400～2479 MHz, ISM band, 79 channels are available for free use |
|
Modulation |
DSSS (Direct Sequence Spread Spectrum) + GFSK |
|
RF output power |
1mW (0dBm, 7-level adjustable) |
|
Receiving sensitivity |
-96dBm |
|
Display |
128 x 64 LCD display |
|
Ambient temperature and humidity requirements |
-20～60℃/0-95%(no condensation) |
|
power supply |
115/230VAC (±5%) – 50/60Hz |
|
Power consumption |
Standard: <50 W |
|
Dimensions (length x height x depth) |
482 x 88 x 270 mm |
|
weight |
4 KG |
Application
Meeting Rooms
Conference Center
House of Worship
Courtrooms
Classrooms
Training Rooms
Hotels
Lecture Halls
All Hand Space
