Overview
The Tendzone SKY-2622 is a multimedia distributed interactive system integrated cloud node, an integrated codec device, supports manual switching to encoding or decoding cloud node, system deployment supports both centerless and center deployment modes, which can be selected on demand in the project . When used as an encoding node, it supports 1 920 * 1200 @ 60 video signal acquisition and encoding; when used as a decoding node, it supports 8 K @ 60 video decoding and 1920 * 1200 @ 60 output display; supports K VM seat applications, and supports LED /LCD splicing applications.
Features
High definition, multi-function
- Supports 8K@60 video decoding, 1920*1200@60 resolution output display
- Supports 1920*1200@60 video signal acquisition and encoding
- Supports KVM agent application
Intelligent splicing, unified management
- Supports LED/LCD screen splicing and synchronous display
- Supports unified management of distributed system platform software
- Supports video windowing, cross-screen, roaming, and overlay display
Safe and reliable
- Domestic chips, embedded Linux system, virus-free
- Support PoE power supply and external power supply backup
- Support video input and output redundant backup
- Support optical link backup
Easy maintenance
- Fanless and silent design
- Integrated design, manually switch to encoding or decoding
- Support 2 side-by-side installation; support 8 centralized installations
- Support web page upgrade

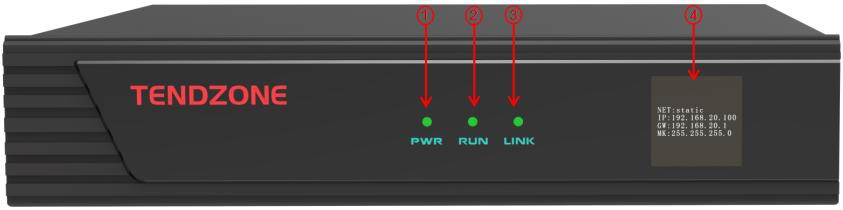

Front Panel
(1)Power indicator
(2)Working indicator
(3)Connectivity indicator
(4)LCD display

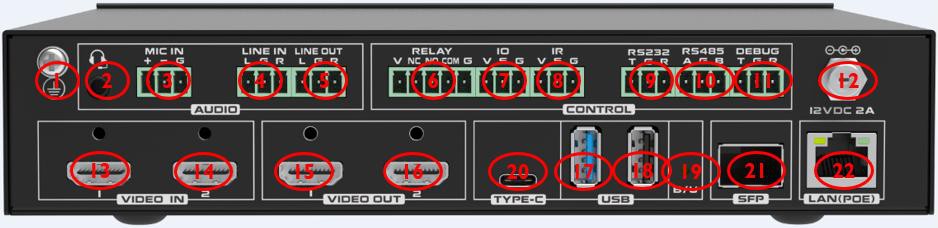

Rear Panel
(1)Ground terminal
(2)3.5mm headset jack
(3)MIC IN microphone input port
(4)LINE IN stereo input port
(5)LINE OUT stereo output port
(6)RELAY low-voltage relay port
(7)I/O port
(8)IR infrared control port
(9)RS232 control port
(10)RS485 control port
(11)debug port
(12)12VDC power port
(13)HDMI IN1 input (with audio)
(14)HDMI IN2 input (with audio)
(15)HDMI OUT1 output (with audio)
(16)HDMI OUT2 output (with audio)
(17)USB3.0 Type-A host port
(18)USB2.0 Type-A host port
(19)Forced upgrade switch or factory reset (press and hold for 10 seconds)
(20) Type- C port (upgrade/ KVM control)
(21)SFP Gigabit optical network port
(22)PoE Gigabit Ethernet port
Hot Tags: 2ch 2k60 4:4:4 network av encoder/decoder, China 2ch 2k60 4:4:4 network av encoder/decoder manufacturers, suppliers, factory, 6 Vailink Network Coaxial Ceiling Speaker, Dante Ceiling Array Microphone, teaching cameras, iot control products, DANTE Microphone, midis distributed multimedia transmission control systems with kvm
SPECIFICATIONS
|
General Performance |
||
|
Hardware Configuration |
Domestic codec chip, self-controllable ; developed based on embedded Linux system , no risk of virus or Trojan intrusion; |
|
|
Front Panel |
1.3-inch LCD screen, displaying device name, device model, hardware version, software version, serial number, and IP address information ; 3 status indicators: PWR, RUN, and LINK; |
|
|
Video Interface |
2- way HDMI video input; 2-way HDMI video output; Support HDMI fixed buckle; |
|
|
Audio Interface |
1-way 3.5mm headphone jack input; 1 balanced MIC audio input, supporting phantom power supply; 1 balanced LINE audio input; 1 balanced LINE audio output; |
|
|
Data Interface |
1-way USB 3.0 Host; 1-way USB 2.0 Host; 1 type-c interface, supporting OTG ; |
|
|
Control interface |
1 relay; 1 IO; 1 IR; 1 RS232; 1 RS485; 1 RS232 debug port; |
|
|
Network Interface |
1 1000M bps optical fiber network port; 1 1000M bps Ethernet port, supporting POE power supply; |
|
|
Power interface |
1 DC power interface, 12V/2A input; |
|
|
Device power consumption |
≤ 12 W ; |
|
|
Leakage protection current |
0.25mA |
|
|
Work Environment |
Temperature: 0~45℃; Relative humidity: 10%～90% RH ; |
|
|
Storage Environment |
Temperature: -20℃～60℃; Relative humidity: 5%～90% RH ; |
|
|
Installation |
Two 1U cabinets installed side by side; |
|
|
Size |
Product size: 220*190* 45mm ; Packing size: 560*408*135mm; Net weight: 1.28KG; Gross weight: 4.12 KG ; |
|
|
Encoder |
Decoder |
|
|
Video Input |
No function |
Support 2- channel 1920*1200@60 video input and encoding; Support encoding format, resolution, bit rate, frame rate, encoding format, rate control settings, bit rate adjustment range 128Kbps~40Mbps, frame rate adjustment range 5~60 frames; support H.264/H.265/YUV444 encoding; |
|
Video Output |
Supports 2- channel 1920 *1200 @60fps video output, with downward resolution compatibility and custom resolution output; supports 8K @ 60 video decoding; |
Support 2- channel 1920*1200@60fps video loop output; |
|
Audio Input |
When used as a KVM seat output node, it supports 1 3.5mm headphone interface input, 1 balanced MIC audio input, and 1 balanced LINE audio input; |
Support 1-way 3.5mm headphone jack input; 1-way balanced MIC audio input, support phantom power supply; 1-way balanced LINE audio input; Support AAC, G.711a, G.711u, G.722 audio format encoding, 48KHz 24-bit sampling rate; |
|
Audio Output |
Support 1 balanced LINE audio output; 1 3.5mm headphone jack output ; Support AAC, G.711a, G.711u, G.722, O PUS audio format decoding, 48KHz 24-bit sampling rate; |
Support 2-channel HDMI audio output; |
|
Video Recognition |
Supports automatic identification of EDID extended display identifier; Support HDCP copyright protection technology; Compatible with progressive scan P-system input; |
|
|
Network Communication |
Support cross-segment communication; Support DH CP to dynamically obtain IP address; Support RTSP/RTP protocol; Support unicast and multicast; |
|
|
Equipment Operation and Maintenance |
Supports obtaining device process survival information, memory usage information, running time information, CPU occupancy rate, and disk usage operation and maintenance information; Support web page configuration; Support network configuration, device upgrade, restart, log export, configuration import/export, clear user configuration, and factory restore; |
|
|
Subtitles/Background |
Support background settings; Support subtitle settings ; Support banner display; |
|
|
Application |
Support KVM agent application; Support splicing display applications; Support ultra-high-resolution video synchronization application; |
|
