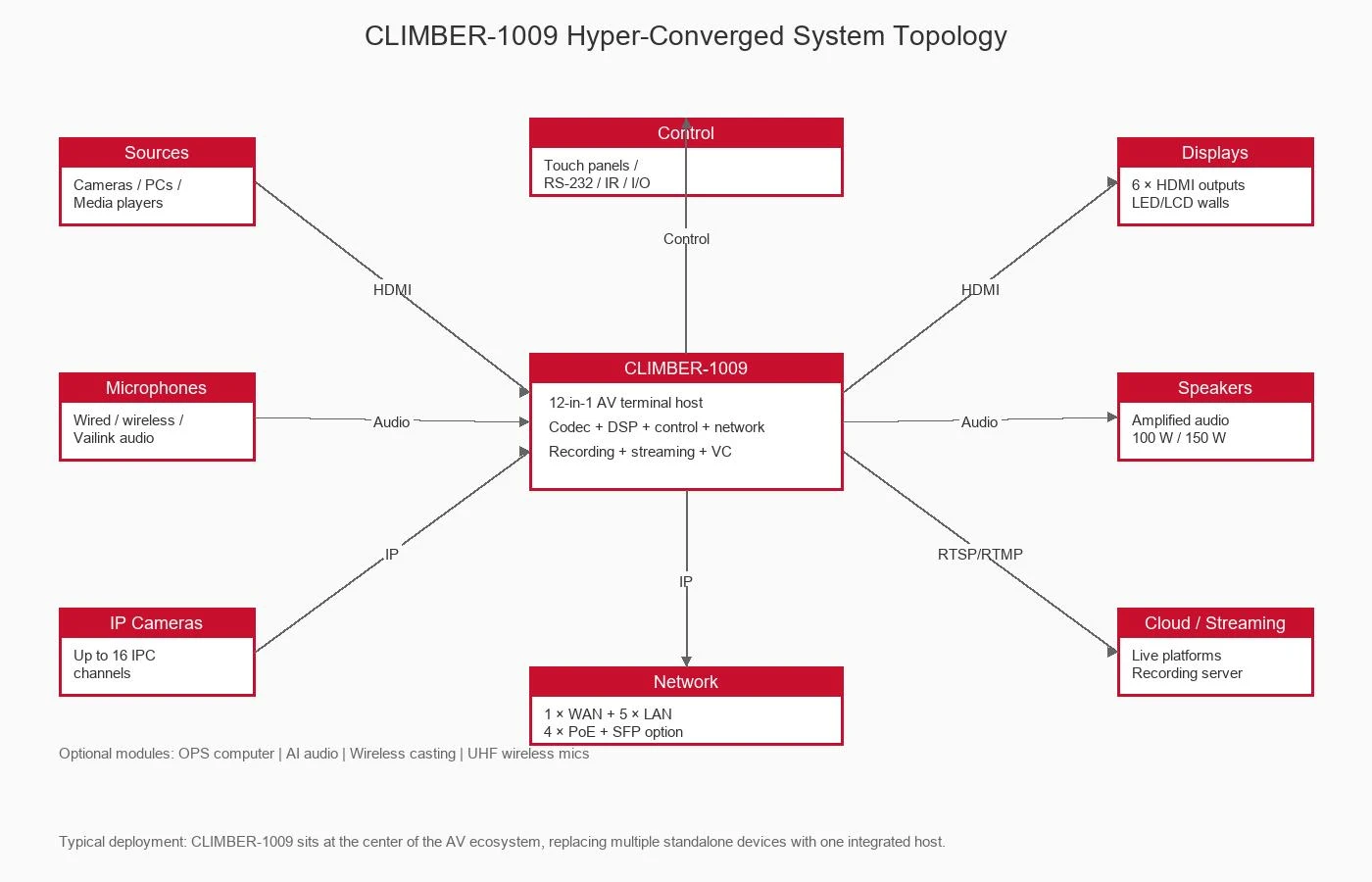

Specifications

Safe and stable

Adopting industrial-grade system architecture, developed based on LINUX system, virus- free

Data Interface

2 USB Type-A, 1 USB Type-B

Network Camera

12 local network cameras, 4 network forwarding

Video Codec

Up to 4 channels of 1080P60 encoding, up to 4 channels of 1080P@60 decoding, or 8 channels of 1080P@30 encoding and 8 channels of 1080P@30 decoding;

Audio and video protocol

Audio supports G.711, G.722, G722.1, G722.1C, AAC, and supports decoding audio code streams

Video supports H.264HP , MP, BP, H265MP

Display terminal

Built-in video splitting function, which can realize single screen/picture-in-picture/picture-out- picture synthesis , subtitle overlay , terminal name overlay, and station logo display in single, double , three, four, five , six , seven, eight, nine, ten , thirteen, and sixteen split screens

control Panel

Supports a variety of control panels, optional 10.1-inch wired Android touch screen ( standard without wall mount, no POE support ) , 10.1-inch network PoE desktop touch screen, 10.1-inch network PoE wall-mounted touch screen (standard with wall-mounted bottom box)

Codec rate

Maximum 16 channels of 1080P codec , 512Kbps~16Mbps per channel

Audio Input

8-way Phoenix terminal input (supports 48V phantom power MIC input or line in linear input) , 4 -way HDMI embedded audio input, 1-way OPS audio input, 1-way wireless projection audio input (optional), 1-way wireless speech module audio input (optional)

Audio Output

4-way line out audio output (or 2 pairs of L/R Phoenix terminal stereo output), 2-way 100W@8 ohm digital amplifier output (or 2-way 150W@4 ohm digital amplifier output) , 2 -way HDMI embedded audio output ; support volume adjustment, audio supports synchronization and mixing . HDMI OUT1 supports amplification of all audio inputs, HDMI OUT2~HDMI OUT6 only support network RSTP stream audio amplification.

Video Input

4 HDMI input interfaces , 16 IP network camera inputs ; HDMI IN1 and HDMI IN3 support input with a maximum resolution of 4K30, and HDMI IN2 and HDMI IN4 support input with a maximum resolution of 1920*1080@60;

Video Output

1) 6- channel HDMI output interface , of which HDMI OUT2~HDMI OUT6 are homologous signal outputs; HDMI OUT1 supports a maximum resolution of 4K30 output, and HDMI OUT2~HDMI OUT6 support a maximum resolution of 1920*1080@60 output;

2) When the built-in OPS computer opens a Tencent meeting (if the camera is connected to HDMI IN), the built-in OPS computer screen can only be output from HDMI OUT1, and HDMI OUT2~6 can only display the screen of the camera connected to HDMI IN;

3) When the built-in OPS opens a Tencent meeting (when only one USB camera is directly connected to the USB port of the OPS as the Tencent meeting camera collection), the built-in OPS computer screen can be output from HDMI OUT1~6;

4) When Tencent Meeting is not in progress, the output of HDMI OUT1 and HDMI OUT2~6 can be selected from wireless screen projection, built-in OPS computer, and HDMI IN1~4;

Audio Processing

Supports automatic echo cancellation (AEC), automatic gain control (AGC), automatic noise cancellation/suppression (ANC /ANS ), automatic feedback cancellation (AFC), mixing matrix (AM), packet loss compensation (PLC)

Video Processing

Supports video resolution adaptation, switching, allocation, screen splitting, scrolling subtitle overlay display , terminal name overlay, station logo display , and image parameter adjustment ; subtitle and terminal name overlay support arbitrary position adjustment; station logo supports upper left, upper right, lower left, and lower right position adjustment, and supports transparency display adjustment;

Communication Protocol

SIP, BFCP dual stream , H.323, H.239 , E.164, H.245, NAT, H.225, Q.931 , RTSP, RTMP, TCP/IP, HTTP, FTP, TCP, UDP, NTP, RTP , RTCP, Telnet, TLS;

Network Interface

1 WAN port, 5 LAN ports; or set 6 network ports to be fully connected; 4 of the network ports support PoE power supply;

Note: If you need to connect to a third-party PoE switch, we recommend that you use a network port that does not support PoE to connect to the other party's PoE switch to ensure that one of the network ports does not provide external PoE power. Try not to connect directly to each other using PoE interfaces.

Mixing function

It also supports local audio, HDMI embedded audio, and remote audio RTSP network access streams entering the mixer, and can dynamically select mixing; it also supports built-in OPS audio input, built-in wireless screen projection audio input (optional), and built-in wireless speaking module audio input (optional) entering the mixer;

Central Control

One-touch central control: switch system, adjust output volume, switch signal source , camera control , recording and broadcasting control , remote call, environment control, etc.

Supports providing 12V power to the control panel through the RELAY port;

Environmental control interface

3-way RS-232/485 interface, 1*RS232/RS485 DEBUG , 2-way RELAY, 2-way I/O, 2-way infrared IR

videoconference​

Support H.323 point-to-point video conference calls and auxiliary stream sending;

Support SIP point-to-point video conference calls and auxiliary stream sending ;

A single machine supports a maximum of 6-party conferences (via SIP protocol) , supports the creation of multiple conference templates, supports scheduled conferences, and automatically convenes conferences according to the scheduled time; you can invite new terminals to join the conference during the conference, or kick a terminal out of the conference; you can mute / unmute any venue, or mute/unmute all venues with one click;

When using the H.323 protocol, GK registration is supported and calls can be made via short numbers;

When using the SIP protocol, SIP registration is supported and calls can be made via short numbers;

Push stream

Support streaming to no less than 8 different live streaming platforms at the same time

Live streaming function

Supports up to 10-channel multicast , live broadcast and on-demand

Recording function

Supports being used as a recording and broadcasting distribution terminal and client, with a maximum of 4 local recording streams ( or recording 1 4K picture ), the recording and broadcasting file format is MP4 , supports automatic copying of USB flash drives, forced upgrade of USB flash drive system and restoration of initial configuration, supports recording file content management (download/export/edit/delete)

Internal hard disk

Standard 2TB 3.5-inch surveillance-grade hard drive, can be expanded to a 12TB hard drive via USB

Network Communication

Support 4 -channel audio mixing and playback, support network sleep and wake-up, one-touch system switch

Maintenance function

Supports Web interface management, provides quick configuration of device ports, supports Web port password modification, IP address modification, factory reset, software upgrade, indicator light, infrared learning, log management, serial port debugging, Telnet remote debugging , remote operation and maintenance management

Built-in OPS computer module

1) OPS computer (Windows version) module, standard configuration integrated OPS 11th generation computer, 16G memory, 512G hard disk, installed with Windows 11 Professional operating system;

2) The Tencent Conference function can be installed, supporting the use of external video and audio signals as the camera and microphone of the Tencent Conference. At the same time, the Tencent Conference video interface can be output through the local HDMI OUT1 interface and amplified through the local audio interface;

3) HDMI OUT2 interface is used as the only acquisition source for Tencent Conference video input;

Wireless screen projection function

1) Optional wireless screen projection module supports wireless transmission of desktop images of portable terminal PC/mobile phone/PAD to hyper-converged cloud nodes through wireless screen projection transmitter or screen projection client, and output through the local HDMI OUT interface to realize wireless sharing functions such as picture sharing/presentation/video file/office collaboration;

2) USB1 is used for pairing with the wireless screen projection transmitter; USB2 is used for upgrading the software version of the wireless screen projection receiving module;

3) The antenna of the wireless receiver module can be extended to the ceiling of the conference room to enhance the reception signal of the wireless projection screen;

Built-in wireless speaking module

Optional wireless microphone/collar clip/headset module, which supports pairing with hyper-converged cloud nodes as the sound source for local sound reinforcement, local recording and broadcasting conference recording, and video conference speech reinforcement;

UHF wireless speech receiving module, supports 2 microphones speaking at the same time;

Installation

2 U telecom standard cabinet installation , it is recommended to install it close to peripheral equipment to reduce wiring workload

Device size

Product size: width*height*depth 436.8mm*89mm*320mm
Packaging size: width*height*depth 620mm*160mm*605mm

Input voltage and current

AC100~240V/50~60Hz

Device power consumption

Without external speaker output and POE powered device: Typical power consumption 80W

When two external speakers and an external POE powered device are connected : Full load power consumption 350 W

Equipment weight

The net weight of the whole machine is 9.3KG, and the total weight with packaging is 12KG

Operating temperature

0~45℃ Working

Humidity Altitude

10% to 90%, altitude less than or equal to 5000 meters
